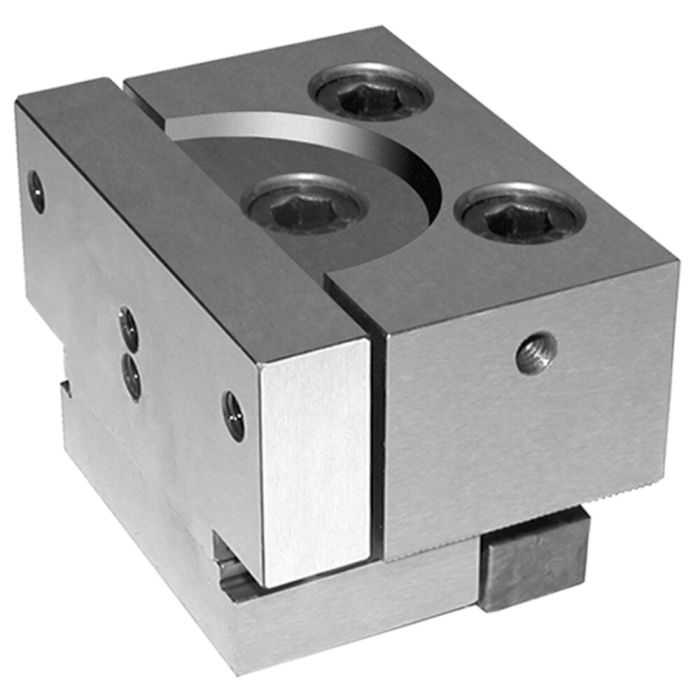

Clamping jaw, without step
| Order no. | Size | for jaw
width
| Clamping force
[kN] | Clamping stroke
[mm] | Weight
[g] | Availability | Your Price |
| 304972 | 50101-50 | 50 | 12 | 2 | 370 | | |
| 304998 | 80101-80 | 80 | 15 | 2 | 1400 | | |
| | | | | | | |
| Order no. | A | b | D | G | H | J | k | L | m | N | T | V |
| 304972 | 49 | 20 | 36,5 | 13,2 | 8 | 8,5 | 18,5 | 11,5 | 7xM5 | 2xM6 | - | 17,5 |
| 304998 | 78 | 32,5 | 55,5 | 20,5 | 10 | 11 | 31,5 | 16 | 8xM6 | 2xM6 | 23 | 23 |
| | | | | | | | | | | | |
More Information | Order no. | 304998 |
|---|
| Operating mode | Mechanical |
|---|
| Backenbreite | 80 |
|---|
