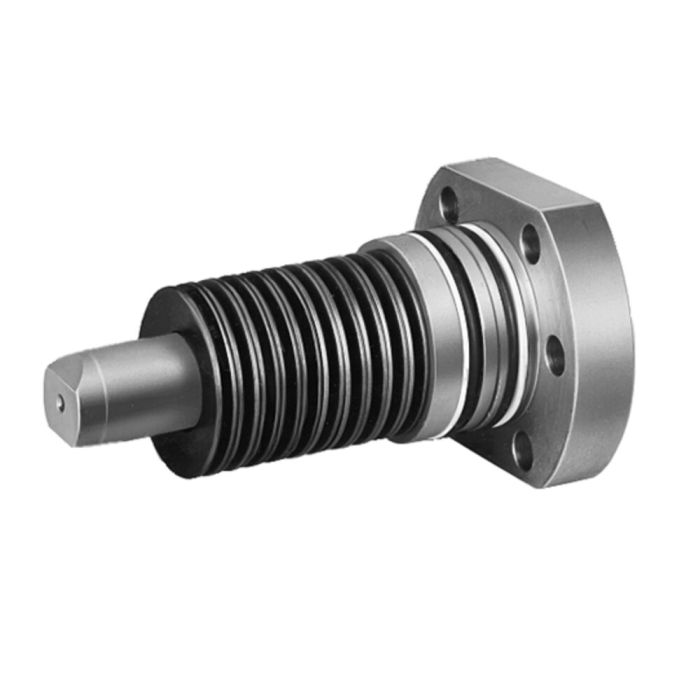

Clamping Piston, complete
For retrofitting to your original ram plate, for stud clamping, max. operating pressure 400 bar, thread M10x25
Order no.
61382
Design:
Hydraulic piston from hot workable steel, tempered and ground. Cover from hardened steel. Complete with disc springs, O-rings, support rings, dowel pin and fastening screws ISO 4762 resistance 8.8.
Application:
This clamping piston can be retrofitted to your original ram plate.
Note:
The use of clamping stud No. 6945-02-04-009 in combination with clamping piston set No. 6945-15-10 is restricted to a maximum operating pressure of 230 bar.
| Order no. | 61382 |
|---|---|
| Product type | Clamping elements |
