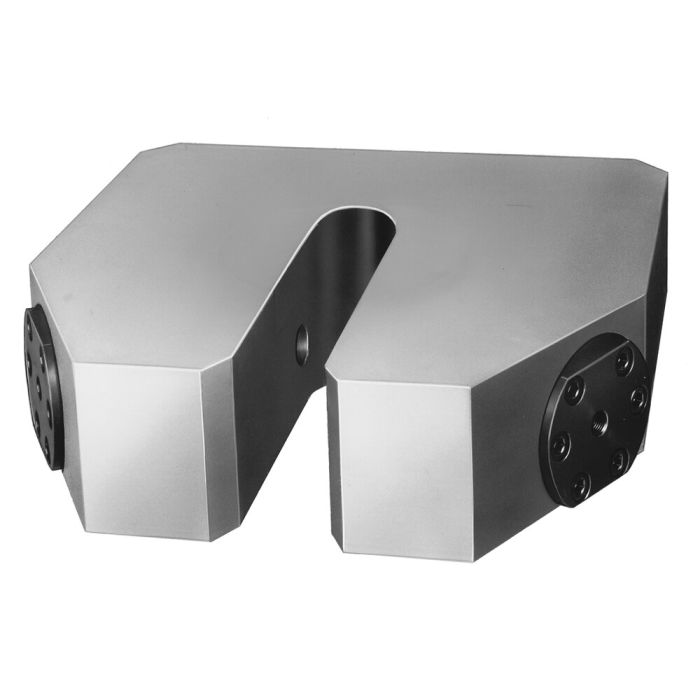

Clamping Stud Holder, hydraulic
For direct attachment to ram, clamping stud dia. 50 mm
Order no.
61390
Design:
Cylinder body made of tempering steel. External, vertical surfaces painted yellow. Complete with two clamping pistons No. 6945-15-10 and cover plates.
Application:
Clamping stud No. 6945-02-04-***, which is screwed into the tool, is gripped hydraulically when it has entered the opening in the clamping-pin chuck.
Note:
No DIN clamping studs must be used for the clamping stud holder. Mounting holes can be incorporated on request. Untoleranced dimensions are to DIN ISO 2768 medium.
On request:
Special versions available on request.
| Order no. | 61390 |
|---|---|
| Product type | Clamping elements |
| Max. clamping force [kN] | 94 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Quick Disconnect Coupler Nr. 69021 Sleeve with external thread, max. operating pressure 1000 bar, nominal size 2,5
- High Pressure Hose with steel-wire interlace Nr. 68551 For thread connection, max. operating pressure 500 bar, length 300 mm
Similar products
- Clamping Piston, complete Nr. 61382 For retrofitting to your original ram plate, for stud clamping, max. operating pressure 400 bar, thread M10x25
