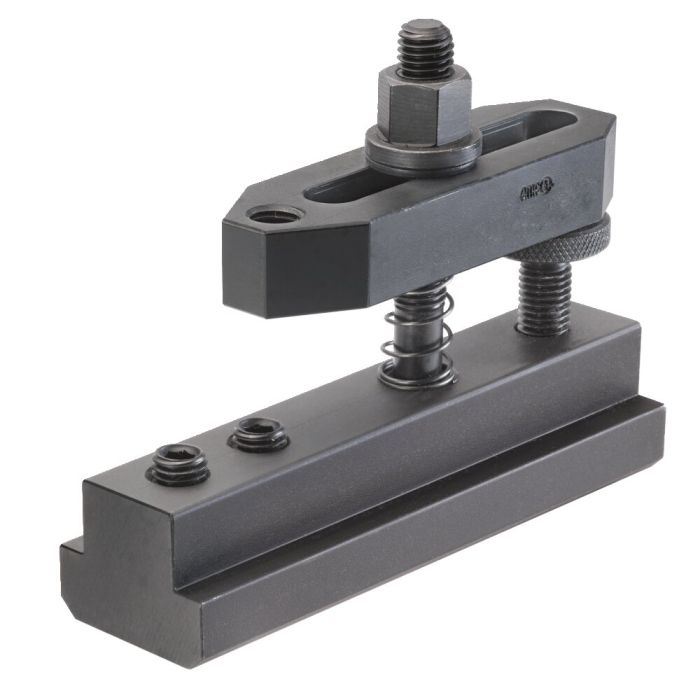

Clamping unit to clamp outside of the tool table
Clamping force 25 kN, slot 22 mm, height 30-45 mm
Order no.
73981
Application:
Used for clamping outside of the tool table. For use when clamping large workpieces or tools that do not allow any space for clamping elements on the tool or machine table.
Note:
For the installation dimensions of the clamp, see No. 7110GX-**-1.
Do not use on presses!
| Order no. | 73981 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 22 |
| Clamping screw metric [M] | 16 |
| Min. clamping height [mm] | 30 |
| Max. clamping height [mm] | 45 |
