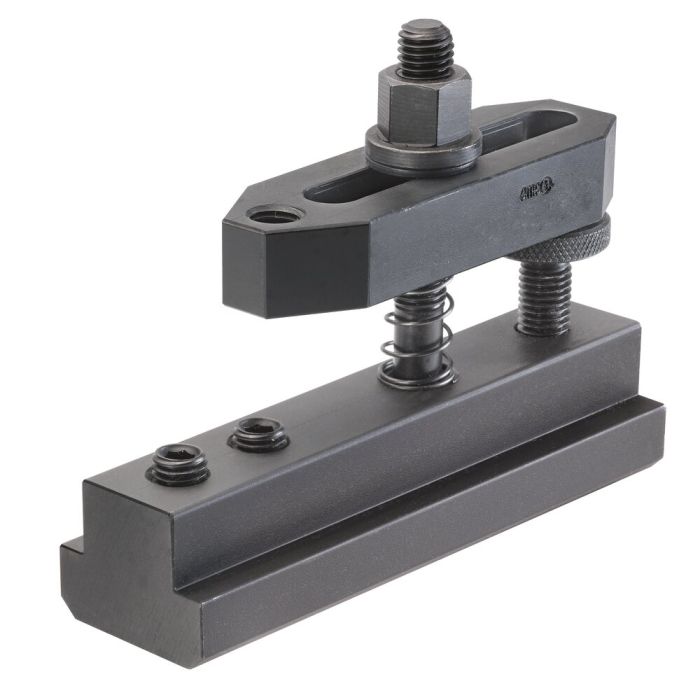

Clamping unit to clamp outside of the tool table
Clamping force 15 kN, slot 18 mm, height 20-35 mm
Order no.
73999
Application:
Used for clamping outside of the tool table. For use when clamping large workpieces or tools that do not allow any space for clamping elements on the tool or machine table.
Note:
For the installation dimensions of the clamp, see No. 7110GX-**-1.
Do not use on presses!
| Order no. | 73999 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 18 |
| Clamping screw metric [M] | 12 |
| Min. clamping height [mm] | 20 |
| Max. clamping height [mm] | 35 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
Similar products
- Tapered clamp with adjusting support screw Nr. 70193 For clamping screw M12/M14, clamping height 10-47 mm
- Cranked clamp with adjusting support screw, complete Nr. 71290 Slot 14 mm, with clamping stud M12x14x100, clamping height 28-56 mm
