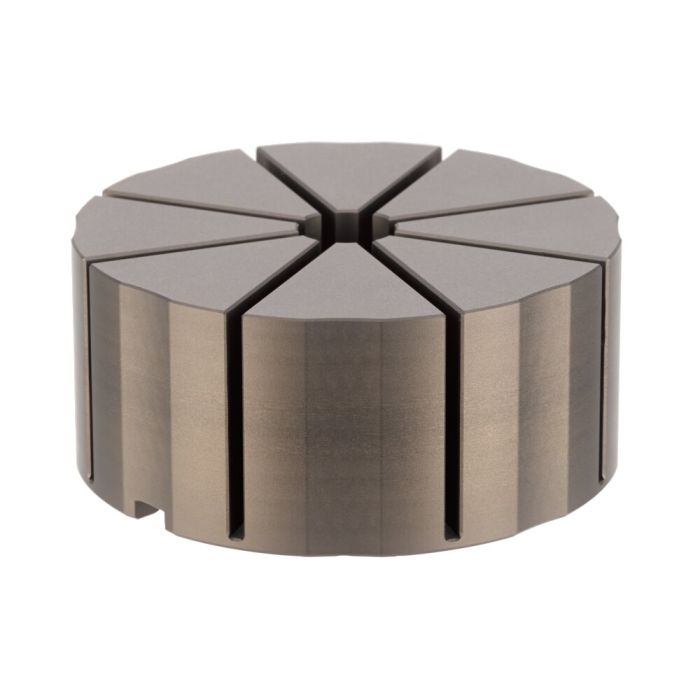

Collet attachment for clamping module KH20 and BH20, hydr.

Design:
The collet attachment with a diameter of 112 mm is suitable for the AMF zero-point hydraulic clamping modules KH20 (Order no. 428425) and BH20 (Order no. 534412) with indexing. The collet is made from anodised, high-strength aluminium.

Application:
The collet attachment is placed on the AMF Zero Point clamping system size KH20 or BH20 in the hydraulic version and guides the radial clamping force to the workpiece after the clamping module is closed. The workpiece contour is milled into the collet attachment with a minimum clamping depth of 2 mm. The collet attachment can be milled off to a height of H1, allowing new workpiece contours to be introduced. The maximum workpiece diameter is 100 mm.
