Mounting kit for collet attachment
For collet No. 6370ZSZ-112
Order no.
550287
Design:

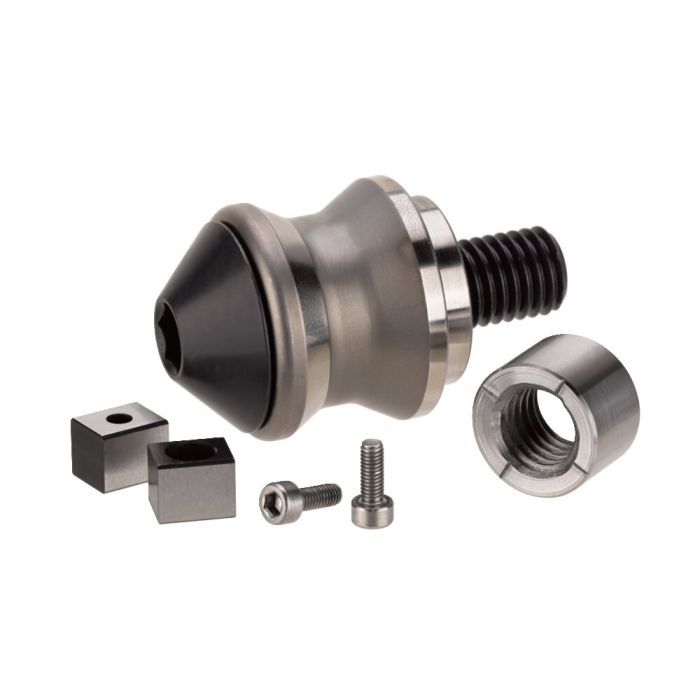

The mounting set includes:
- 1 pull-stud size 20, design: sword
- 1 captive screw size 20
- 1 lock nut M12
- 2 indexing notches, width 8 mm
Application:
The mounting set is mounted with the collet attachment 112 mm, order no. 550286. After installation, the collet attachment can be securely and hydraulically clamped onto the AMF clamping modules, size 20.
| Order no. | 550287 |
|---|---|
| Operating mode | Hydraulic |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Collet attachment for clamping module KH20 and BH20, hydr. Nr. 550286 Suitable for the AMF zero-point hydraulic clamping modules KH20 & BH20
