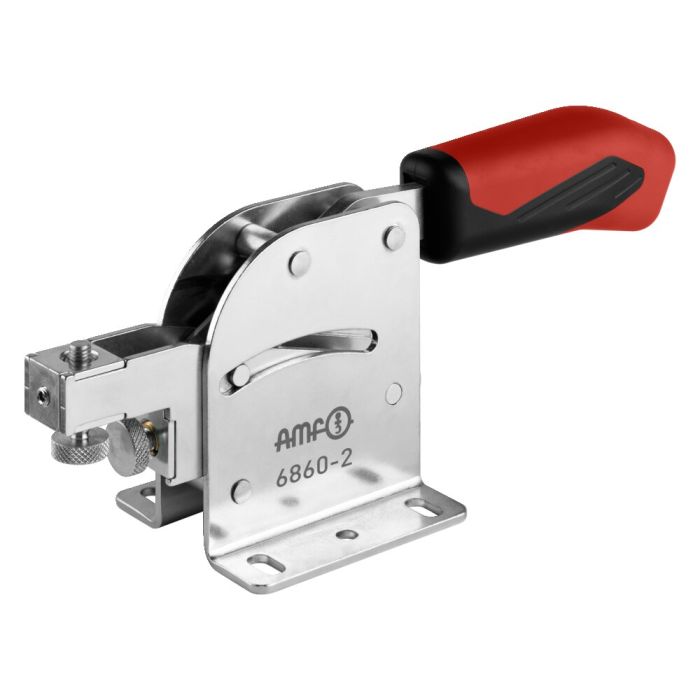

Combination clamp with red handle
Application:
Precise positioning and reliable clamping of individual components are of paramount importance when welding fixtures. In practice, this is guaranteed through the simultaneous use of rods and vertical toggle clamps, or by one's own complex design. The AMF Combiclamp accomplishes these two tasks in one operation, eliminating the need to use different toggle clamps. The sliding block guide on the Combiclamp converts the motion of the lever arm into a horizontal and vertical clamping movement, through which the workpiece is positioned and clamped at the same time.
See for yourself the saving potential of using the new AMF Combiclamp!
Advantage:
- Positioning and clamping in one operation
- Robust and stable design
- Workpiece easy to remove thanks to the fully retracted clamping arm
- Optimised quality consistent with the AMF quality standard.
| Order no. | 93864 |
|---|---|
| Product type | Combination clamp |
| Max. clamping force [kN] | 3 |
| Größe Schnellspanner | 3 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Red |
