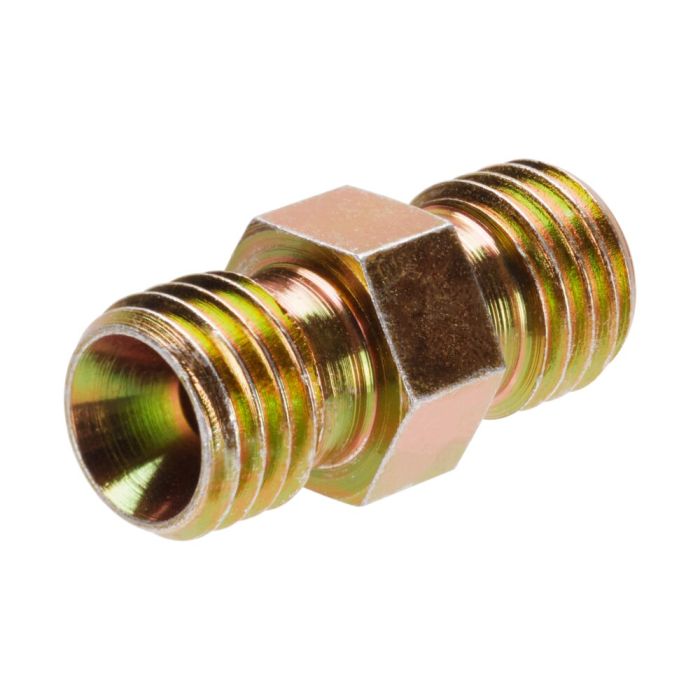

Connection journal
Max. operating pressure 400 bar, inside Ø 5 mm, thread M12x1,5
Order no.
69344
Design:
Seal of transitional journal (external thread) in acc. with DIN 3852 Form A with sealing ring in acc. with DIN 7603 Form A. Seal: at end of hose or pipe connection with 60° sealing cone in acc. with ISO 8434-6.
Note:
Warning: Do not use Teflon tape! Copper seal 1/8 order no. 69815 Copper seal 1/4 order no. 69823
| Order no. | 69344 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Screw-in fitting, straight, light duty Nr. 320689 For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
