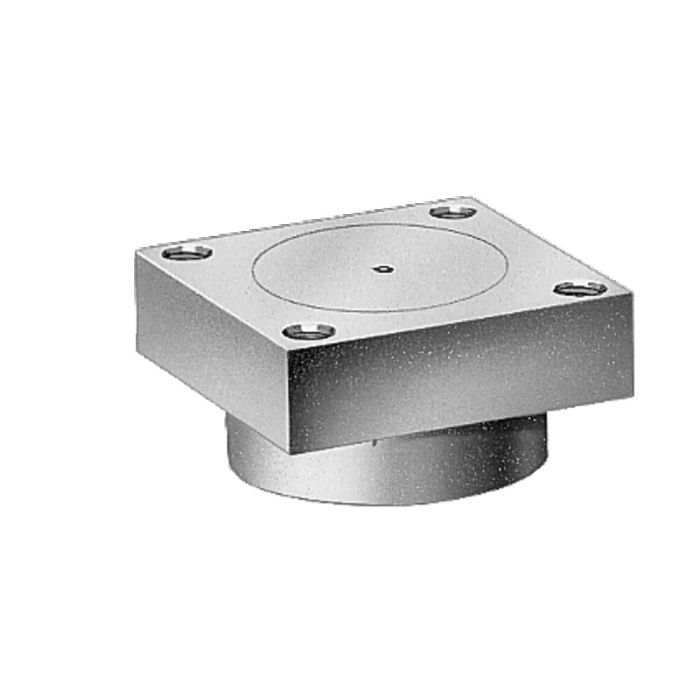

Connection Plate
For connecting pressure switch 6982-09 and 6982-10
Order no.
60780
Application:
For connecting pressure switch 6982-09 and 6982-10.
| Order no. | 60780 |
|---|---|
| Product type | Pressure switch |
| Max. operating pressure [bar] | 640 |
| Oil port | O-ring |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Piston Pressure Switch Nr. 570200 Electric-hydraulic, for O-ring connection, operating pressure 10-100 bar, actuation mechanical
- Piston Pressure Switch Nr. 568354 Electric-hydraulic, for O-ring connection, operating pressure 40-640 bar, actuation mechanical
- Screw-in fitting, straight, heavy-duty Nr. 160184 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
- Screw-in fitting, straight, heavy-duty Nr. 175323 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
