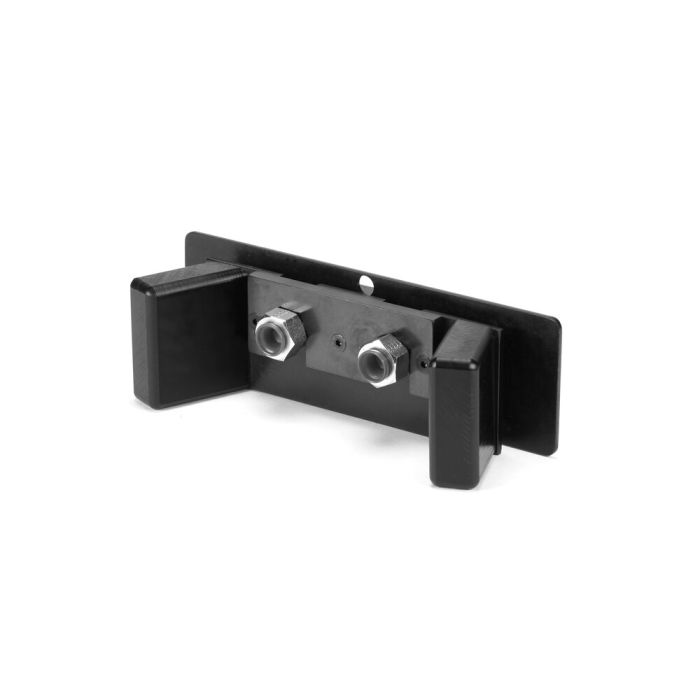

Coupling Unit for Pallet Decoupler Block
To connect the oil supply with the pallet decoupler block No. 6919-20, max. operating pressure 400 bar
Order no.
320028
Design:
The coupling unit consists out of two coupling mechanism No. 6919-25M, order no. 320036 for clamping and unclamping circuit. The coupling elements are mounted to an adapter with handle and disengaging mechanism.
Application:
The coupling unit is used to connect the oil supply with the pallet decoupler block No. 6919-20.
Features:
Simple handling due two hand operation. Interchanging of connections is impossible.
| Order no. | 320028 |
|---|---|
| Product type | Pallet decoupler block |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread |
