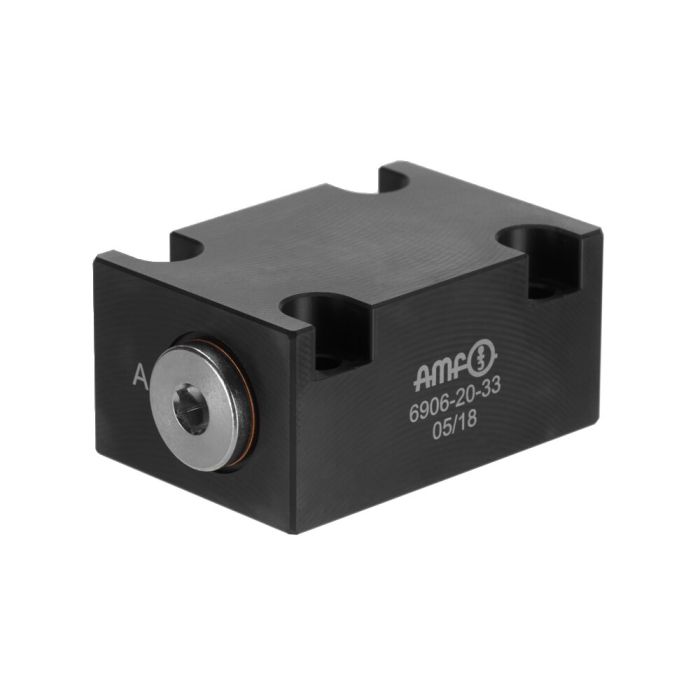

Diverter plate
Facilitates use of the air hydraulic pump 6904-25 without additional valve attachment
Order no.
325332
Design:
Steel, TEM-deburred and phosphated. With O-rings. CETOP 03 hole pattern.
Application:
Facilitates use of the air hydraulic pump 6904-25 without additional valve attachment.
Note:
The fastening bolts ISO 4762-M5x30 order no. 338244 for fastening without a pressure regulating valve and the fastening bolts ISO 4762-M5x70 order no. 49349 for fastening with a pressure control valve are not supplied as standard.
| Order no. | 325332 |
|---|---|
| Max. operating pressure [bar] | 500 |
| Type of actuation | Single acting, Double acting |
| Clamping circuits | 1 |
