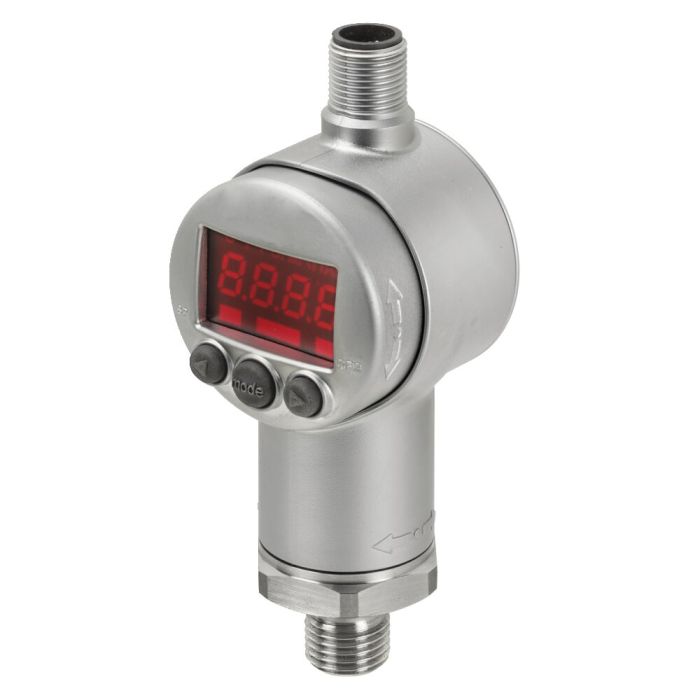

Electronic pressure switch

Design:
Compact electronic pressure switch with integrated 4-digit digital display for pressure measurement in the high-pressure range. Stainless steel measuring cell with thin-film strain gauge. Screw-in thread G¼ A – DIN 3852-E, 2 switch outputs.

Application:
For the electronic-hydraulic pressure monitoring in pump units and in circuits of hydraulic clamping devices.

Features:
Display rotatable in two axes. As a result, the device can be oriented optimally in almost every mounting position. The four-digit digital display can depict the pressure in bar, psi or MPa.
Switching points and switch-back hystereses can be set dependently. Switch-on and reset delay can be set from 0 to 99.9 seconds.
Adjustable display: current pressure, peak pressure value or to switching point 1 or switching point 2. Simple handling via key programming.
