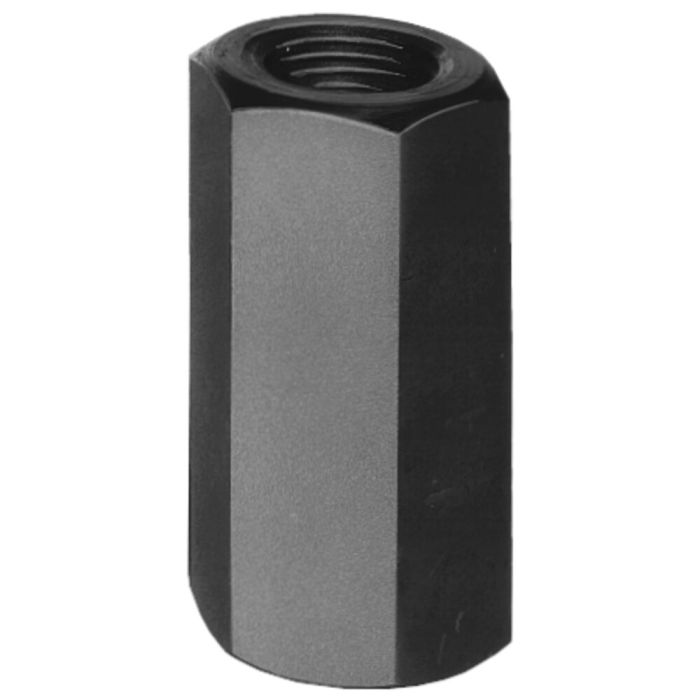

Elongation nuts (3.0 d high)

Size M22, height 66 mm, width 34 mm

Order no.

82305

Order no.	Size D	E	m	S	Packaging unit	Weight [g]
82271	M10	17,77	30	16	25	30
82289	M12	20,03	36	18	25	48
82297	M14	23,36	42	21	25	73
82305	M22	37,72	66	34	10	390
82651	M6	11,05	18	10	100	8
82669	M8	14,38	24	13	50	19
82677	M10	18,9	30	17	25	42
82685	M12	21,1	36	19	25	64
82693	M14	24,49	42	22	25	95
82701	M16	26,75	48	24	25	120
82719	M18	30,14	54	27	20	170
82727	M20	33,53	60	30	10	240
82735	M22	35,72	66	32	10	280
82743	M24	39,98	72	36	-	400
82750	M27	45,63	81	41	-	600
82768	M30	51,28	90	46	-	850
82776	M36	61,31	108	55	-	1470
82784	M42	72,61	126	65	-	2340
82792	M48	83,91	144	75	-	3600

Advantage:
- very good roughness values on the clamping surface by means of lathed surface

* Size not included in DIN, dimensions similar to DIN
