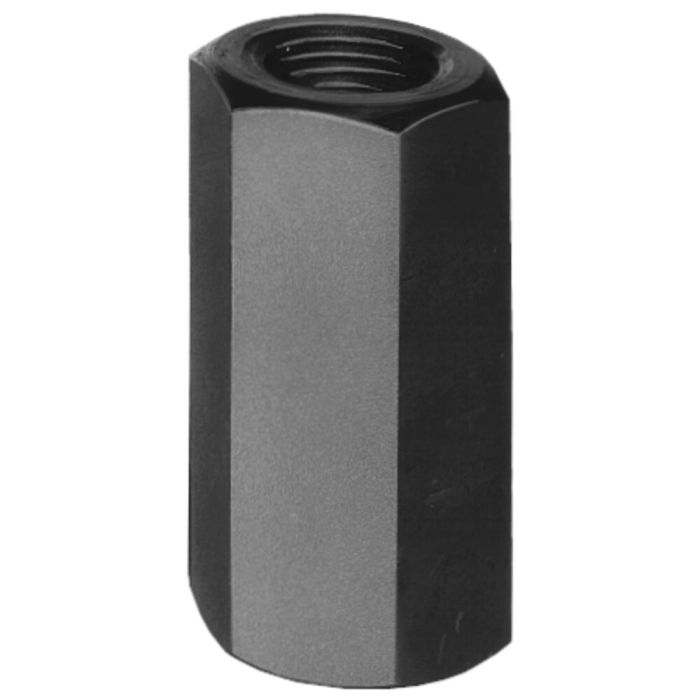

Elongation nuts (3.0 d high)
Size M36, height 108 mm, width 55 mm
| Order no. | Size D | E | m | S | Packaging
unit | Weight
[g] | Availability | Your Price |
| 82271 | M10 | 17,77 | 30 | 16 | 25 | 30 | | |
| 82289 | M12 | 20,03 | 36 | 18 | 25 | 48 | | |
| 82297 | M14 | 23,36 | 42 | 21 | 25 | 73 | | |
| 82305 | M22 | 37,72 | 66 | 34 | 10 | 390 | | |
| 82651 | M6 | 11,05 | 18 | 10 | 100 | 8 | | |
| 82669 | M8 | 14,38 | 24 | 13 | 50 | 19 | | |
| 82677 | M10 | 18,9 | 30 | 17 | 25 | 42 | | |
| 82685 | M12 | 21,1 | 36 | 19 | 25 | 64 | | |
| 82693 | M14 | 24,49 | 42 | 22 | 25 | 95 | | |
| 82701 | M16 | 26,75 | 48 | 24 | 25 | 120 | | |
| 82719 | M18 | 30,14 | 54 | 27 | 20 | 170 | | |
| 82727 | M20 | 33,53 | 60 | 30 | 10 | 240 | | |
| 82735 | M22 | 35,72 | 66 | 32 | 10 | 280 | | |
| 82743 | M24 | 39,98 | 72 | 36 | - | 400 | | |
| 82750 | M27 | 45,63 | 81 | 41 | - | 600 | | |
| 82768 | M30 | 51,28 | 90 | 46 | - | 850 | | |
| 82776 | M36 | 61,31 | 108 | 55 | - | 1470 | | |
| 82784 | M42 | 72,61 | 126 | 65 | - | 2340 | | |
| 82792 | M48 | 83,91 | 144 | 75 | - | 3600 | | |
| | | | | | | | |
Advantage:
- very good roughness values on the clamping surface by means of lathed surface
* Size not included in DIN, dimensions similar to DIN
More Information | Order no. | 82776 |
|---|
| Product type | Hexagon nuts |
|---|
| Thread [M] | 36 |
|---|
| Strength class | 10 |
|---|
