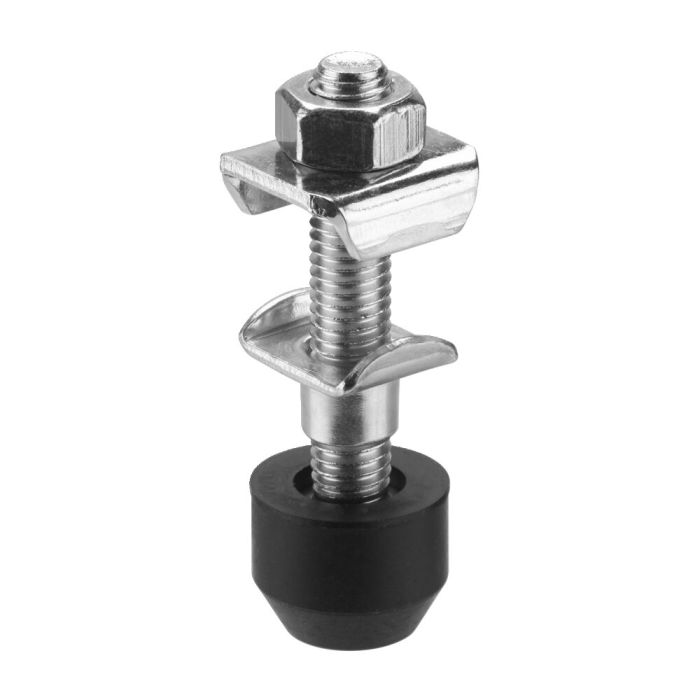

ESD clamping screw
For open clamping arms, size 1, screw DIN 933 M5x30
Order no.
562599
Application:
The ESD clamping screw has been specially developed for use in ESD protection zones (EPA – electrostatic protected area) for working on electrostatically sensitive components, assemblies or devices in accordance with the standard DIN EN 61340-5-1.
Features:
- Leakage resistance according to DIN IEC/TR 61340-5-2 between 10⁰⁴ and 10⁰⁹ Ohm
- Discharge time according to DIN IEC/TR 61340-5-2 < 2 Sekunden
- Surface tension (electric field strength) according to DIN EN 61340-5-1 < 100 Volt
Note:
The ESD clamping screw is non-insulating. It must not be used in areas where open voltages are used.
| Order no. | 562599 |
|---|---|
| Product type | Vertical toggle clamp, Horizontal toggle clamp |
| Größe Schnellspanner | 1 |
| Special features | ESD |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- ESD vertical toggle clamp Nr. 562484 With open clamping arm and horizontal base, size 1, max. clamping force 1,1 kN
- ESD horizontal toggle clamp Nr. 562489 With open clamping arm and horizontal base, size 1, max. clamping force 1,1 kN
