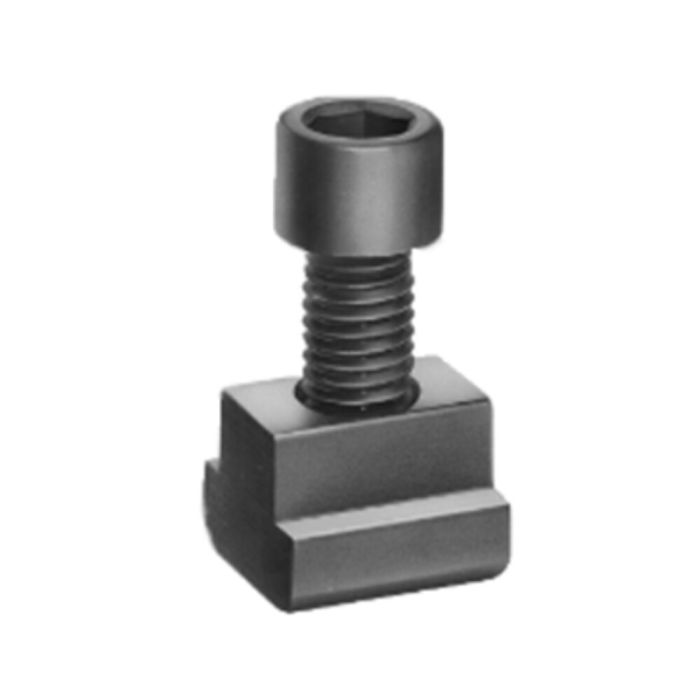

Fastening kit for hook end and counterholder

Slot 36 mm, L6540H/6926Z 80 mm, screw M24

Order no.

568527

Order no.	A	L 6540H [mm]	L 6540G [mm]	m	Weight [g]
376483	14	35 *	-	M12	84
376509	16	40 *	-	M12	113
376525	18	40 *	-	M12	136
376541	18	45 *	-	M16	184
376566	20	50 *	-	M16	231
376582	22	55 *	-	M16	305
376608	24	55 *	-	M16	389
568518	22	-	55	M20	376
568519	24	-	55	M20	456
568520	28	-	65	M20	601
568521	28	-	60	M24	689
568522	36	-	70	M24	1100
568523	22	65 *	-	M20	401
568524	24	70 *	-	M20	493
568525	28	75 *	-	M20	625
568526	28	70 *	-	M24	725
568527	36	80 *	-	M24	1125
84251	14	-	25	M12	78
84269	16	-	30	M12	95
84277	18	-	35	M12	131
84285	18	-	35	M16	168
84293	20	-	40	M16	216
84343	22	-	45	M16	290
84350	24	-	-	M16	374

* For use of the protection set no. 6540KS

More Information
Order no.	568527
Operating mode	Mechanical, Hydraulic
