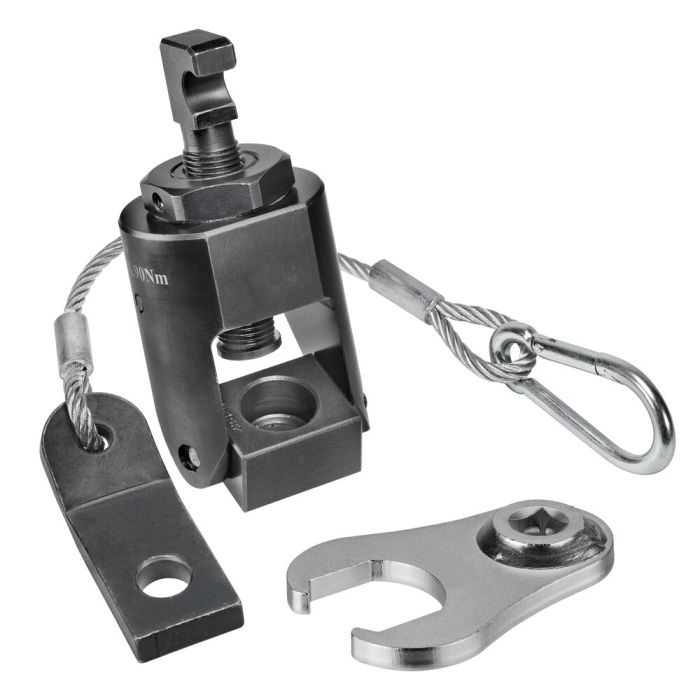

Hook end, mechanical

Size 24, slot 28-36

Order no.

376533

Order no.	Size	Slot	G	Max. permissible torque [Nm]	Max. possible clamping force [kN]	SW	Weight [g]
374934	12	14, 16, 18	M12	45	15	36	853
374959	16	18, 20, 22, 24	M16	90	40	46	1902
376517	20	22-28	M20	190	75	65	6037
376533	24	28-36	M24	300	120	65	6040

Order no.	A	b	B1	C	C1	dia. D	F2	H2 min.	H2 max.	L	Clamping stroke S2
374934	34	34	90	18	8	54	47	100	118	80	18
374959	37	44	120	25	10	70	62	122	153	107	31
376517	58	64	151	41	10	98	86	195	250	134	55
376533	58	64	151	41	10	98	86	199	260	134	61

Note:
Installation exclusively with the AMF fastening kit 6541 for hook ends and the protection set 6540K.
