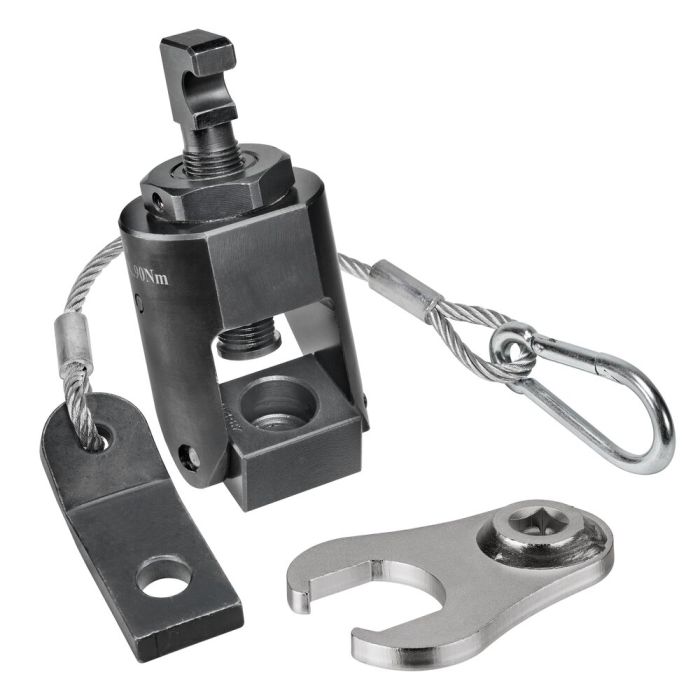

Hook end, mechanical
Size 16, slot 18, 20, 22, 24
| Order no. | Size | Slot | G | Max. permissible
torque
[Nm] | Max. possible
clamping force
[kN] | SW | Weight
[g] | Availability | Your Price |
| 374934 | 12 | 14, 16, 18 | M12 | 45 | 15 | 36 | 853 | | |
| 374959 | 16 | 18, 20, 22, 24 | M16 | 90 | 40 | 46 | 1902 | | |
| 376517 | 20 | 22-28 | M20 | 190 | 75 | 65 | 6037 | | |
| 376533 | 24 | 28-36 | M24 | 300 | 120 | 65 | 6040 | | |
| | | | | | | | | |
| Order no. | A | b | B1 | C | C1 | dia. D
| F2 | H2 min. | H2 max. | L | Clamping stroke S2 |
| 374934 | 34 | 34 | 90 | 18 | 8 | 54 | 47 | 100 | 118 | 80 | 18 |
| 374959 | 37 | 44 | 120 | 25 | 10 | 70 | 62 | 122 | 153 | 107 | 31 |
| 376517 | 58 | 64 | 151 | 41 | 10 | 98 | 86 | 195 | 250 | 134 | 55 |
| 376533 | 58 | 64 | 151 | 41 | 10 | 98 | 86 | 199 | 260 | 134 | 61 |
| | | | | | | | | | | |
Note:
Installation exclusively with the AMF fastening kit 6541 for hook ends and the protection set 6540K.
More Information | Order no. | 374959 |
|---|
| Operating mode | Mechanical |
|---|
