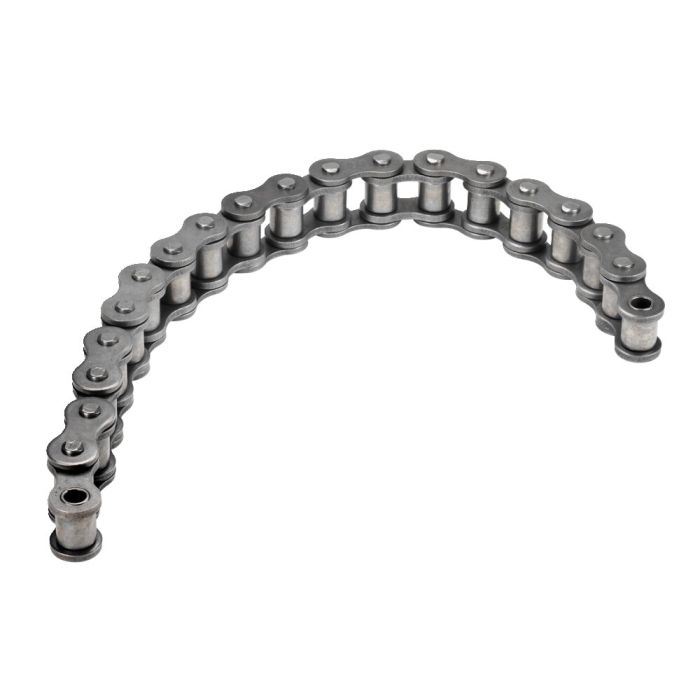

Roller chain Size 16, Nominal size 500
Order no. Size Nominal size L b2 B3 N P Max. possible Weight Availability Your Price 374736 12 125 111 20 13 15 15,875 15 114
374744 12 250 238 20 13 15 15,875 15 228
374751 12 500 492 20 13 15 15,875 15 455
374769 12 1000 1000 20 13 15 15,875 15 910
374777 16 125 127 23 25 21 25,4 40 335
374785 16 250 229 23 25 21 25,4 40 670
374793 16 500 483 23 25 21 25,4 40 1340
374801 16 1000 991 23 25 21 25,4 40 2680
376673 20 1000 984 44 29 26 31,75 75 3720
376699 20 1500 1492 44 29 26 31,75 75 5580
376715 20 2000 2000 44 29 26 31,75 75 7440
376723 24 1000 1028 54 38 33 38,1 120 7050
376749 24 1500 1485 54 38 33 38,1 120 10575
376764 24 2000 2019 54 38 33 38,1 120 14100
Application:
Advantage:
On request:
More Information Order no. 374793 Operating mode Mechanical, Hydraulic
