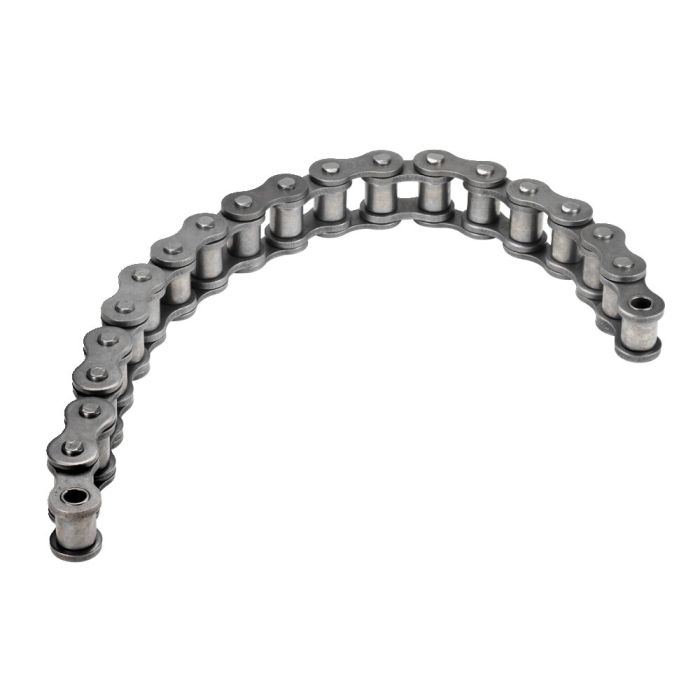

Roller chain Size 24, Nominal size 1500
Order no. Size Nominal size L B1 B2 G1 K1 L1 P Max. possible Weight Availability Your Price 374736 12 125 111 9,65 13 14,7 4,1 19,6 15,875 15 114
374744 12 250 238 9,65 13 14,7 4,1 19,6 15,875 15 228
374751 12 500 492 9,65 13 14,7 4,1 19,6 15,875 15 455
374769 12 1000 1000 9,65 13 14,7 4,1 19,6 15,875 15 910
374777 16 125 127 17,02 25 21,0 5,4 36,1 25,400 40 335
374785 16 250 229 17,02 25 21,0 5,4 36,1 25,400 40 670
374793 16 500 483 17,02 25 21,0 5,4 36,1 25,400 40 1340
374801 16 1000 991 17,02 25 21,0 5,4 36,1 25,400 40 2680
376673 20 1000 984 19,56 29 26,4 6,1 43,2 31,750 75 3720
376699 20 1500 1492 19,56 29 26,4 6,1 43,2 31,750 75 5580
376715 20 2000 2000 19,56 29 26,4 6,1 43,2 31,750 75 7440
376723 24 1000 1028 25,40 38 33,4 6,6 53,4 38,100 120 7050
376749 24 1500 1485 25,40 38 33,4 6,6 53,4 38,100 120 10575
376764 24 2000 2019 25,40 38 33,4 6,6 53,4 38,100 120 14100
Application:
Advantage:
On request:
More Information Order no. 376749 Operating mode Mechanical Weight<br>[g] 10575
If you are missing a download, please write to us using our contact form .
Area Language File name Type File size
Similar products
Chain clamping set Nr. 87627 Roller chains 991 mm (1x), 229 mm (1x), 483 mm (1x), 25.4 mm (1x)
