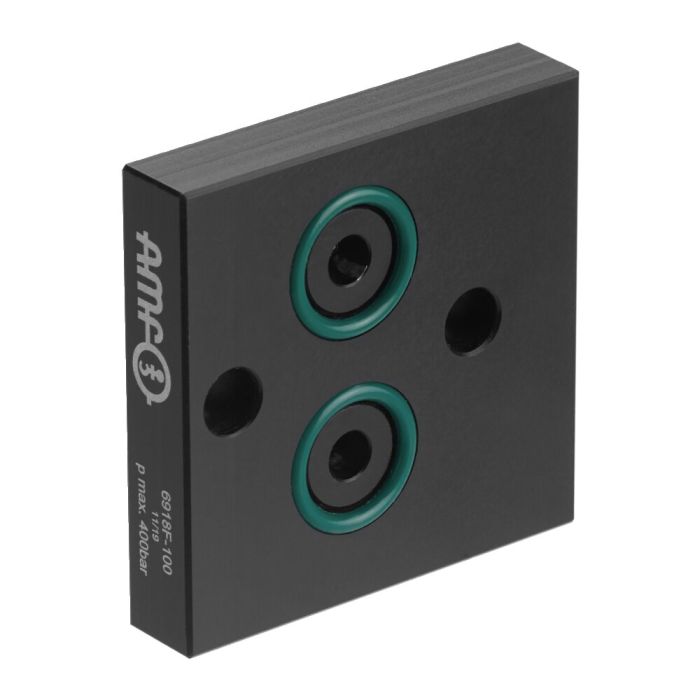

Filter plate
To protect the sequential valve 6918-3 and 6918-12
Order no.
562093
Design:
Filter plate and filter sleeve made of aluminium, surfaces black anodised. Filter plates made of metal mesh.
Application:
Used to protect the sequential valve 6918-3 and 6918-12 from contamination in clamping devices.
Note:
If a finer strainer is required, this can be easily replaced. The finer the filter selected, the greater the flow resistance.
Replacement filter:
Filter, plug-in design 25 μm, order no. 562203
Filter, plug-in design 40 μm, order no. 562204
Filter, plug-in design 100 μm, order no. 562205
| Order no. | 562093 |
|---|---|
| Product type | Sequence valve |
| Max. operating pressure [bar] | 400 |
| Oil port | O-ring |
| Volume flow [l/min] | 20 |
