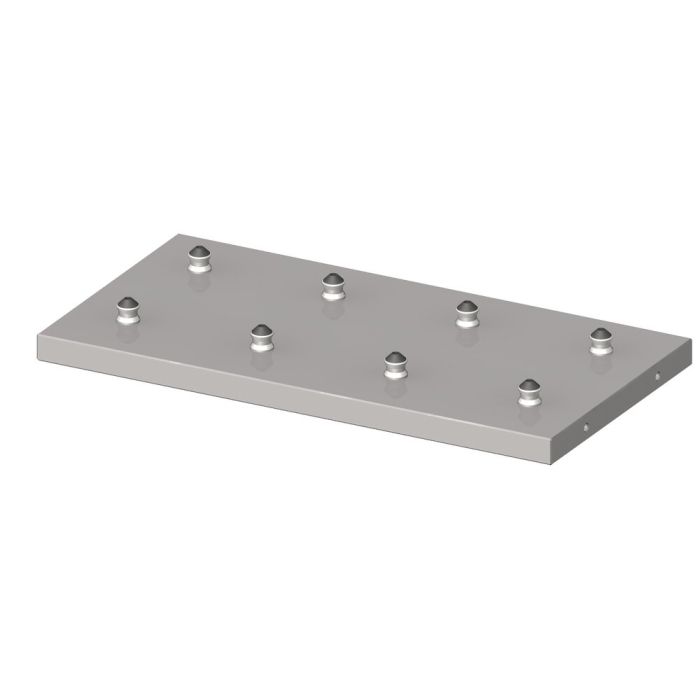

Fixture plate
Suitable for 8-point clamping station KH10.2
Order no.
429324
Note:
On request, we can incorporate mounting holes according to your specifications in the fixture plate.
On request:
Other dimensions, pitch spacings and number of equipped pull-studs.
| Order no. | 429324 |
|---|---|
| Product type | Quick-change pallets |
| Operating mode | Hydraulic, Mechanical |
| Size clamping module | 10 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 10 for M8 engagement screw Nr. 303610 For clamping modules size 10, zero point pull-stud
