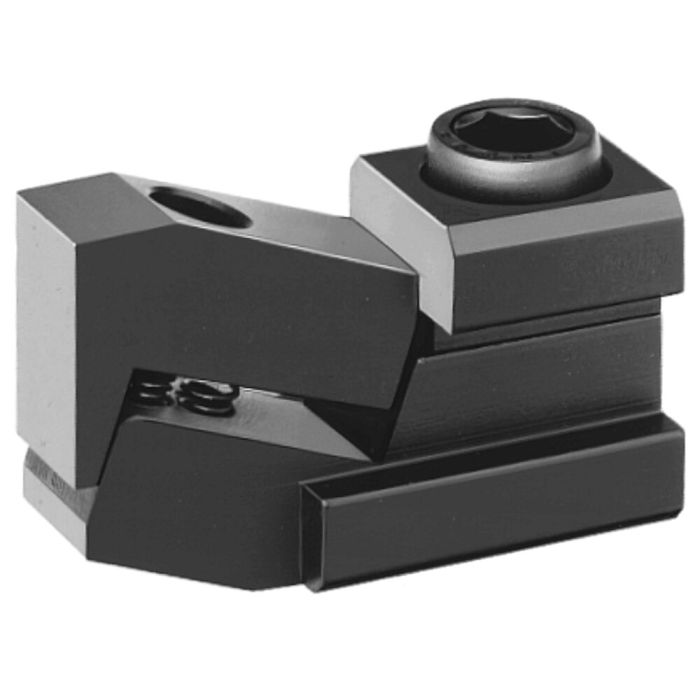

Flat clamp, model Mini-Bulle
Slot 12 mm, max. clamping height 13,5 mm, max. clamping force vertical 5 kN, max. pull down force 0,6 kN
Order no.
73098
Application:
These tempered clamps are designed for extremely low workpieces. Wedge action of jaws presses the workpiece firmly and safely against the machine table. The horizontal forces are compensated by a screw related to slot size, which blocks the clamp without damage to table.
Note:
Hmin./Hmax.: depending on the groove depth according to DIN 650.
The clamping piece can be ground by X mm. This allows lower clamping heights to be achieved.
The clamping forces F1 and F2 are achieved with optimum design and utilisation of the max. tightening torque of the fastening bolts.
| Order no. | 73098 |
|---|---|
| Product type | Low height clamping jaws |
| Slot [mm] | 12 |
