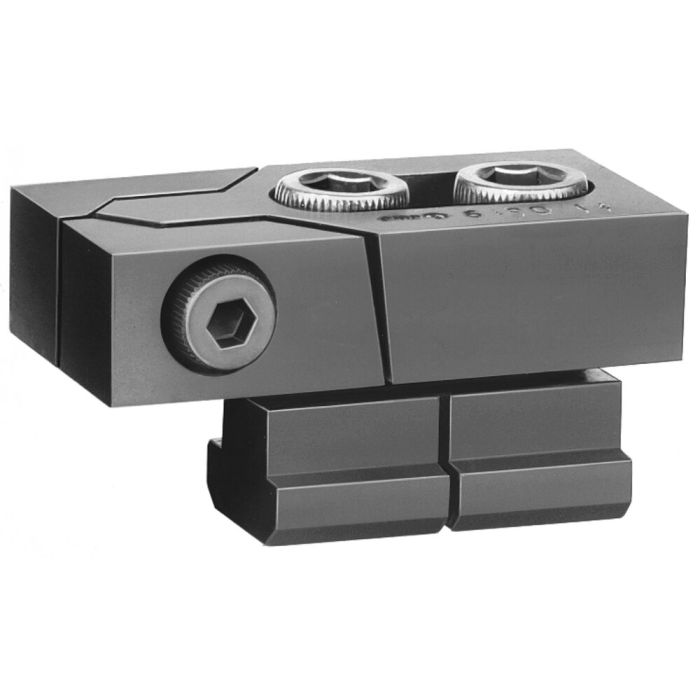

Low height clamping jaws, model Bulle
Slot 12 mm, max. clamping force vertical 16 kN, max. pull down force 0,6 kN
Order no.
72959
Note:
The clamping forces F1 and F2 are achieved with optimum design and utilisation of the max. tightening torque of the fastening bolts.
| Order no. | 72959 |
|---|---|
| Product type | Low height clamping jaws |
| Slot [mm] | 12 |
