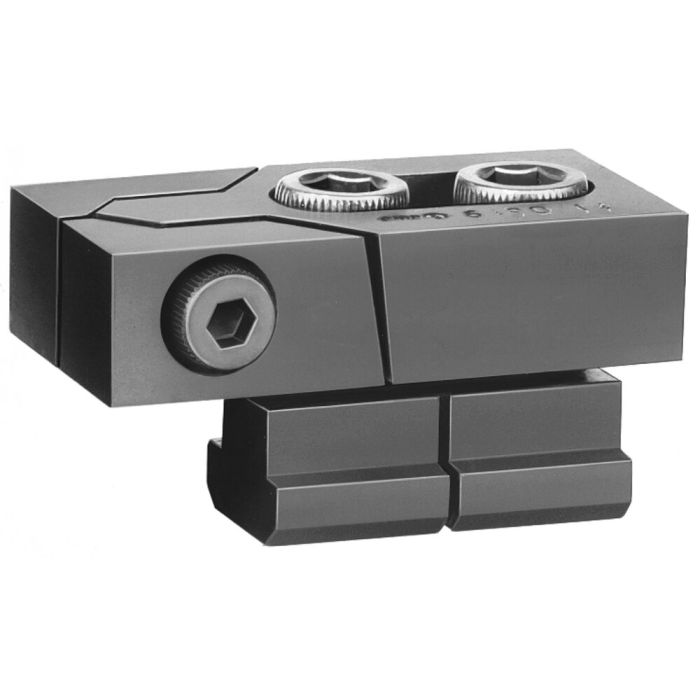

Low height clamping jaws, model Bulle
Slot 18 mm, max. clamping force vertical 36 kN, max. pull down force 1,4 kN
Order no.
72991
Note:
The clamping forces F1 and F2 are achieved with optimum design and utilisation of the max. tightening torque of the fastening bolts.
| Order no. | 72991 |
|---|---|
| Product type | Low height clamping jaws |
| Slot [mm] | 18 |
