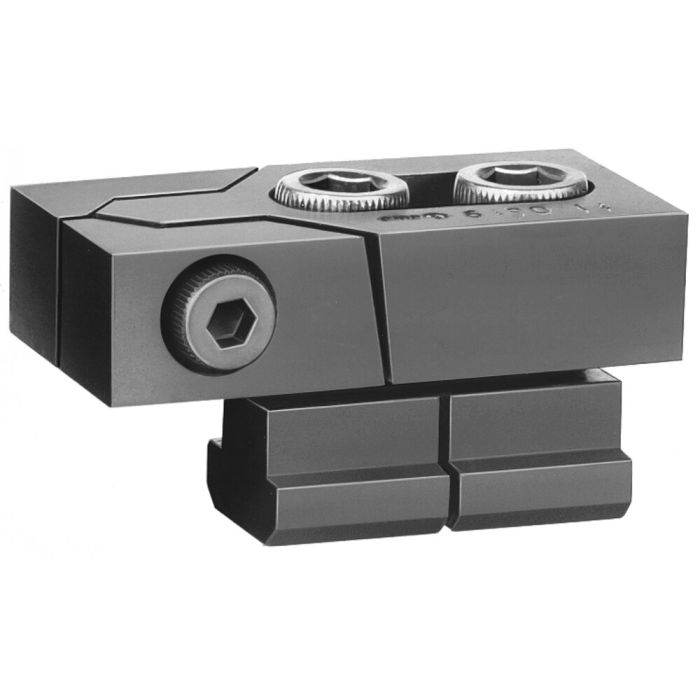

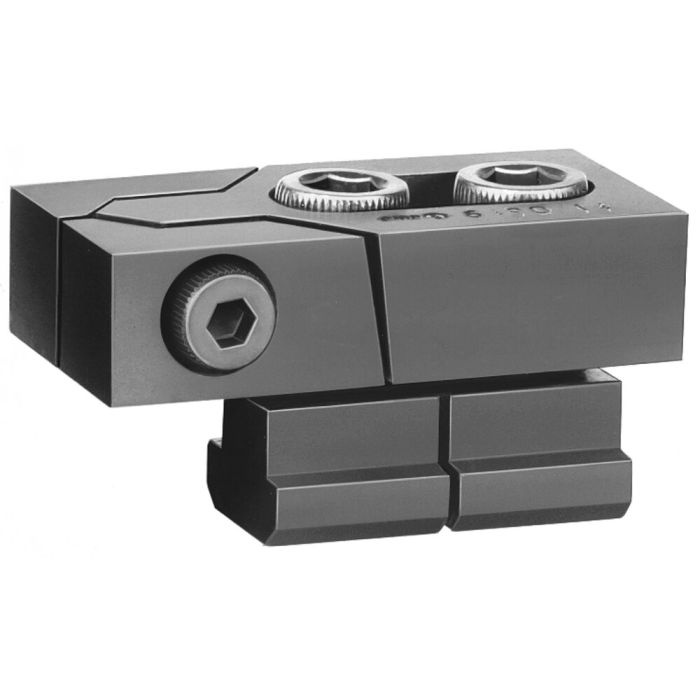

Low height clamping jaws, model Bulle
Slot 28 mm, max. clamping force vertical 36 kN, max. pull down force 1,4 kN
Order no.
73031
Note:
The clamping forces F1 and F2 are achieved with optimum design and utilisation of the max. tightening torque of the fastening bolts.
| Order no. | 73031 |
|---|---|
| Product type | Low height clamping jaws |
| Slot [mm] | 28 |
