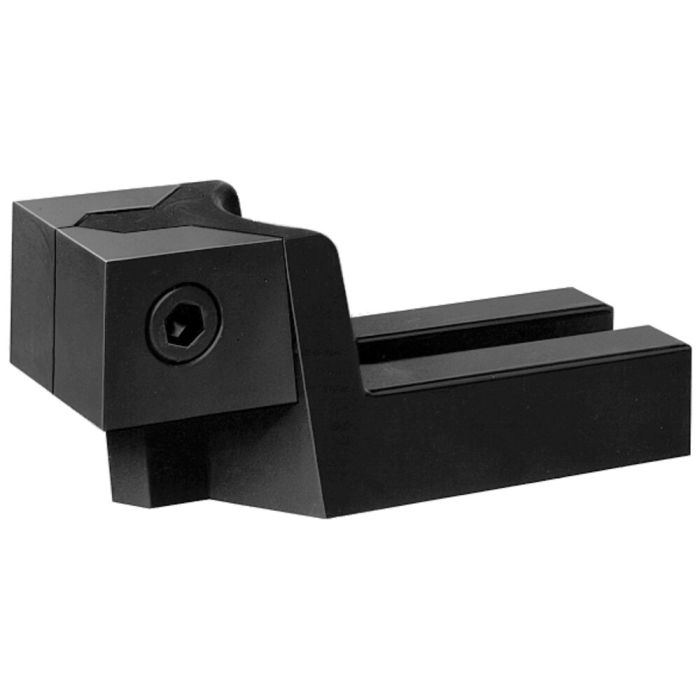

Low height clamping jaws, model Maxi-Bulle
Slot 22-36 mm, max. clamping force vertical 38-44 kN, max. pull down force 1,5-1,7 kN
Order no.
73155
Application:
The clamping jaws "Maxi-Bulle" for work on larger heights was developed from the tried and tested Model "Bulle" no. 6490. The wedge faces of these clamps are skilfully arranged to achieve maximum clamping force with low exertion. For fastening, 2 T-slot bolts DIN 787 for each clamping jaw, according to T-slot size in use, should be ordered separately. For lower arrangement of clamping screws use cap screws ISO 4762 with washers DIN 6340 and T-nuts 508.
* Clamping forces F1 and F2 depend on the groove width.
| Order no. | 73155 |
|---|---|
| Product type | Low height clamping jaws |
| Slot [mm] | 22, 24, 28, 30, 32, 36 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
Similar products
- Extra strong clamping jaw Nr. 73239 Slot 32-42 mm, max. clamping force vertical 50 kN, max. pull down force 7,5 kN
- Solid clamping jaws, flat design Nr. 562017 Slot 20-30 mm, max. clamping force vertical 25-36 kN, max. pull down force 4,5-5,4 kN
