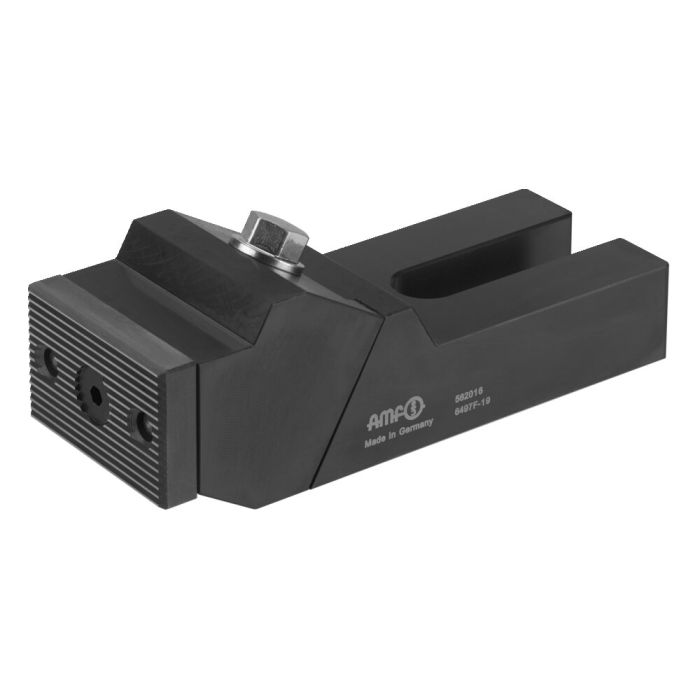

Solid clamping jaws, flat design
Slot 20-30 mm, max. clamping force vertical 25-36 kN, max. pull down force 4,5-5,4 kN
Order no.
562017
Application:
The large clamping surface makes these solid clamping jaws suitable for laterally clamping workpieces. We recommend using two clamping studs for fastening the solid clamping jaw on the machine table. Screws for T-slots DIN 787 - two screws per clamping jaw - should be ordered separately as a fastening bolt depending on the width of the slot.
Note:
The clamping forces F1 and F2 are achieved with optimum design and utilisation of the maximum tightening torque of the fastening bolts.
* Clamping forces F1 and F2 depend on the groove width
| Order no. | 562017 |
|---|---|
| Product type | Solid clamping jaws |
| Slot [mm] | 20, 22, 24, 28, 30 |
