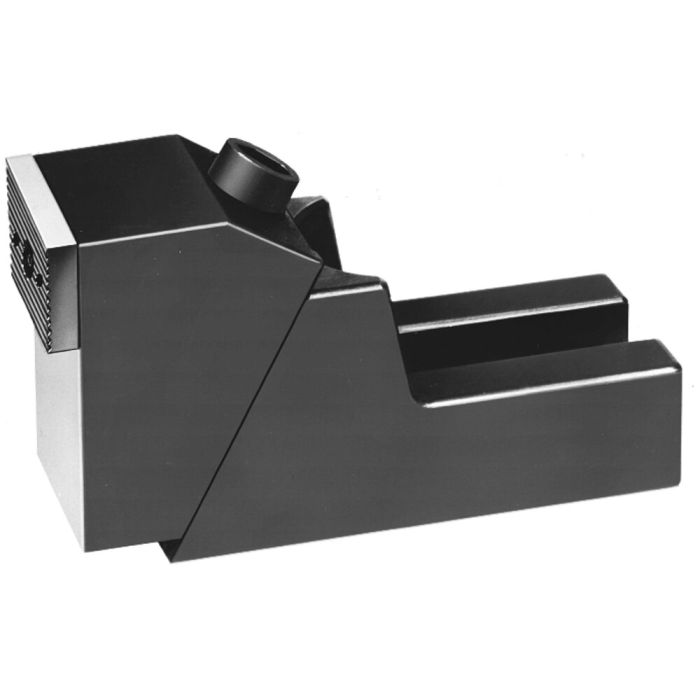

Extra strong clamping jaw
Slot 20-30 mm, max. clamping force vertical 25-36 kN, max. pull down force 4,5-5,4 kN
Order no.
73221
Application:
Due to their large clamping faces these clamping jaws are suitable for lateral clamping of high workpieces. For fastening on the machine table we recommend the use of 2 clamping screws! Related to T-slot size in use, 2 T-slot bolts DIN 787 for each clamp should be ordered separately.
Note:
The clamping forces F1 and F2 are achieved with optimum design and utilisation of the maximum tightening torque of the fastening bolts.
* Clamping forces F1 and F2 depend on the groove width.
| Order no. | 73221 |
|---|---|
| Product type | Solid clamping jaws |
| Slot [mm] | 20, 22, 24, 28, 30 |
