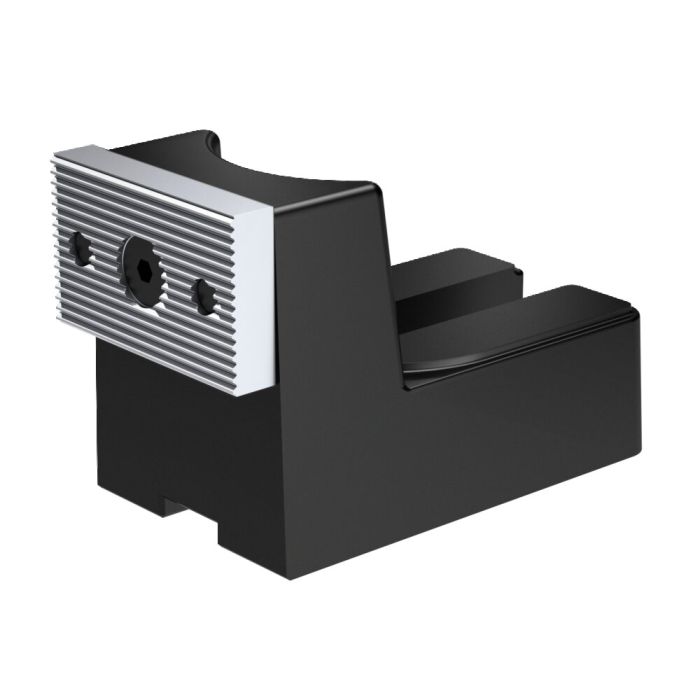

Stop, fixed
Slot 20-30 mm, width 75 mm, length 177 mm, height 100 mm
Order no.
550510
Application:
Stop for workpieces or fixtures that are clamped or fastened to the machine table using a stable clamping jaw. Depending on requirements, the clamping jaw can be rotated so that either a smooth surface or a serrated surface is available.
Note:
Flat sliding block no. 6322A or 6322B enables the stop to be accurately positioned in the machine table groove.
| Order no. | 550510 |
|---|---|
| Product type | Stops |
| Slot [mm] | 20, 22, 24, 28, 30 |
