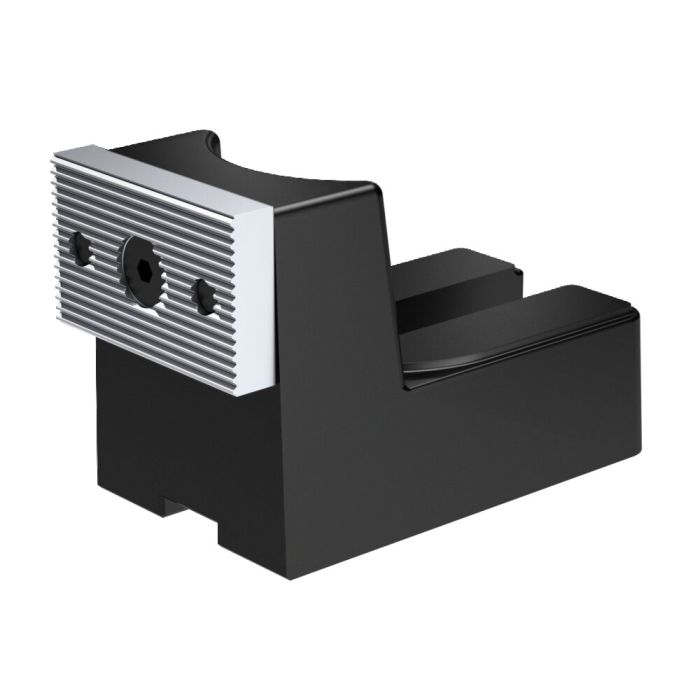

Stop, fixed
Slot 12-18 mm, width 65 mm, length 132 mm, height 85 mm
Order no.
550509
Application:
Stop for workpieces or fixtures that are clamped or fastened to the machine table using a stable clamping jaw. Depending on requirements, the clamping jaw can be rotated so that either a smooth surface or a serrated surface is available.
Note:
Flat sliding block no. 6322A or 6322B enables the stop to be accurately positioned in the machine table groove.
| Order no. | 550509 |
|---|---|
| Product type | Stops |
| Slot [mm] | 12, 14, 16, 18 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
Similar products
- Extra strong clamping jaw Nr. 73213 Slot 12-18 mm, max. clamping force vertical 8-28 kN, max. pull down force 1,2-4,2 kN
