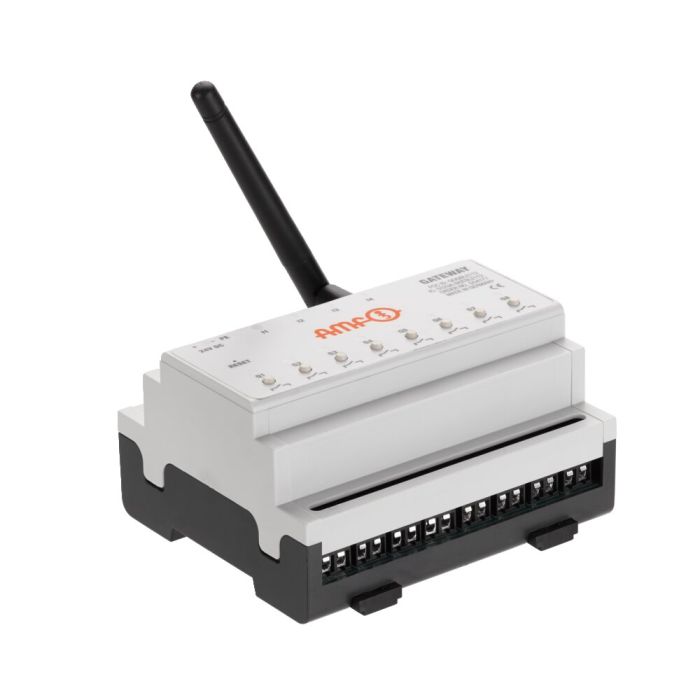

Gateway

Design:
The gateway is available in three designs, which differ in a status output:
- 554177: No status output, up to 8 Sender-Units can be coupled.
- 564041: One status output for monitoring the battery status and connection status. Up to 7 Sender-Units can be coupled.
- 564042: One status output for monitoring the battery status. Up to 7 Sender-Units can be coupled.

Application:
The Gateway is a receiver for the incoming radio signals of a transmitter (Sender-Unit). The signal from the Gateway is monitored and visualised and can be transmitted via potential-free relay outputs.

We recommend installing the Gateway inside an electrical box and positioning the antenna near the Sender-Unit, from the electrical box, using an antenna extension cable (No. 5030ZA).

The Sender-Unit is assigned explicitly to an output of the Gateway. A pairing stick (No. 5030ZP) is required for the procedure. The Sender-Unit can optionally be paired (assigned) with the Gateway using pushbuttons on the Gateway or by the integrated web interface. The Gateway has an Ethernet interface for this purpose.

Features:
- Transmission protocol: Bluetooth Low Energy (BLE 4.0)
- Range of the radio signal: approx. 10 metres
- Supply voltage: 24 V DC
- Rated current: 0.2 A
- Integrated web interface
- Designed for ambient temperatures of +5 to +65 °C

Note:
Supplied with antenna as standard.
Pairing stick required for pairing the Sender-Units.
For further technical information please request the data sheet.
