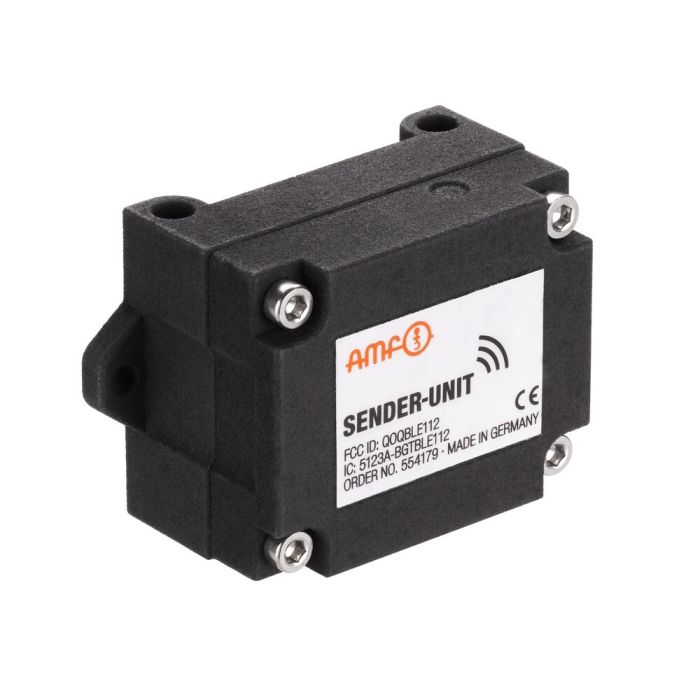

Sender unit
Design:
The Sender-Unit is available in two versions, which vary in battery life:
- Sender-Unit (Order no. 554178): Battery life up to 1.5 years
- Sender-Unit longlife (Order no. 554179): Battery life up to 5 years
Application:
The Sender-Unit transmits a sensor signal to the gateway wirelessly. The sensor is connected to the Sender-Unit by cable. The battery condition of the Sender-Unit is monitored by the gateway and displayed visually on the gateway or web interface.
Features:
- Input: 1 cabled for power-free sensor (e.g. microswitch or reed switch)
- Output: 1 wireless to the gateway
- Transmission protocol: Bluetooth Low Energy (BLE 4.0)
- Range of the radio signal: approx. 10 metres
- Designed for ambient temperatures of +5 to +65 °C
Note:
For further technical information please request the data sheet.
| Order no. | 554178 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Spare battery and flat seal Nr. 554860 1 button cell and 1 flat seal for Sender-Unit (Order no. 554178) and wireless pressure switch (Order no. 554862 and 554799)
-
- Sender-Unit Gripper Nr. 560406 The Sender Unit Gripper Reed reliably detects the upper or lower piston position of the gripper
