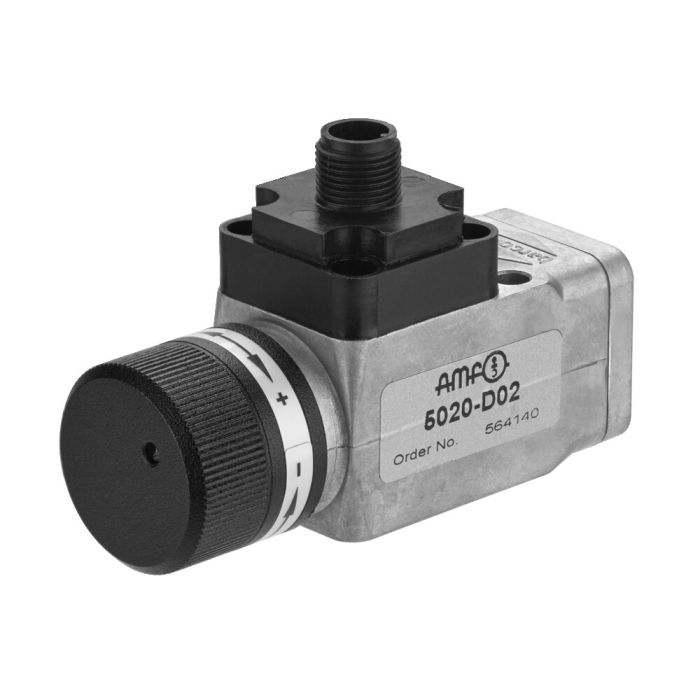

Pressure switch, pneumatic
Application:
The pneumatic pressure switch is a mechanical pressure switch, which is connected to a Sender-Unit (5020SUS) via a connection cable (5030ZV). It is used for pressure monitoring pneumatic pressure, e.g. in a pneumatic clamping circuit. The switch signal on the set switching point is transmitted wirelessly to the gateway.
Features:
- Sensor type: mechanical pressure switch
- pneumatic connection: G1/4 inside
- electrical connection: 3-pin M12x1
- screw mounting
Note:
Please order the transmitter unit and connection cable separately.
For further technical information please request the data sheet.
| Order no. | 564140 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Connecting cable Nr. 564141 Connection of pressure switch (5020-D02) with sender unit (5010SUS), length of connecting cable 300 mm
