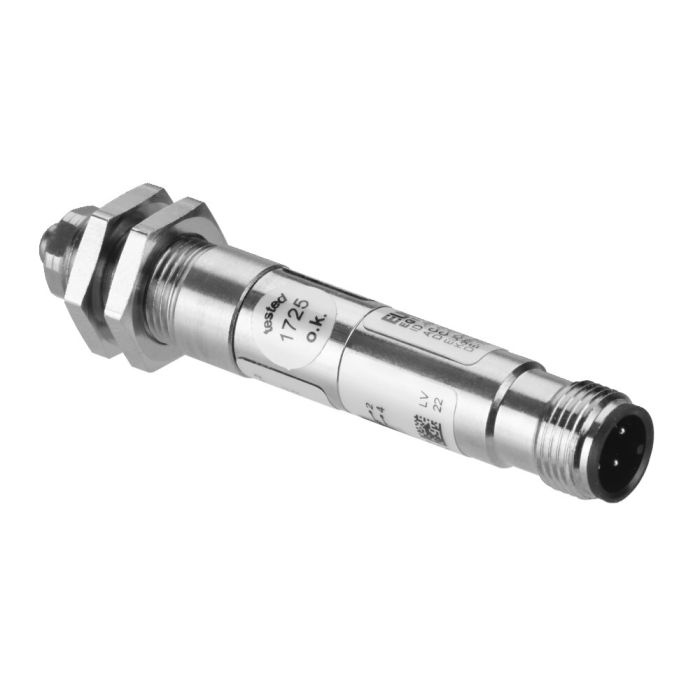

Microswitch M05
Application:
Compact microswitch for querying different states of a clamping device or component, such as support control, position monitoring or clamping control. The microswitch is connected to the transmitter unit by a by means of the 5030ZV-01 connecting cable.
Features:
- Housing: nickel-plated brass
- Function: mechanical switching
- The IP67 certified switch is water, dust and moisture-resistant
- Electrical connection: 3-pin M12 x 1 round plug connector (5030ZV-01)
- Designed for ambient temperatures from -20°°C to +80°°C
- The stroke is a max. of 3.5 mm with an operating force of approx. 20 N.
Note:
Please order the connecting cable separately.
For additional technical information, please request the data sheet.
| Order no. | 567171 |
|---|
