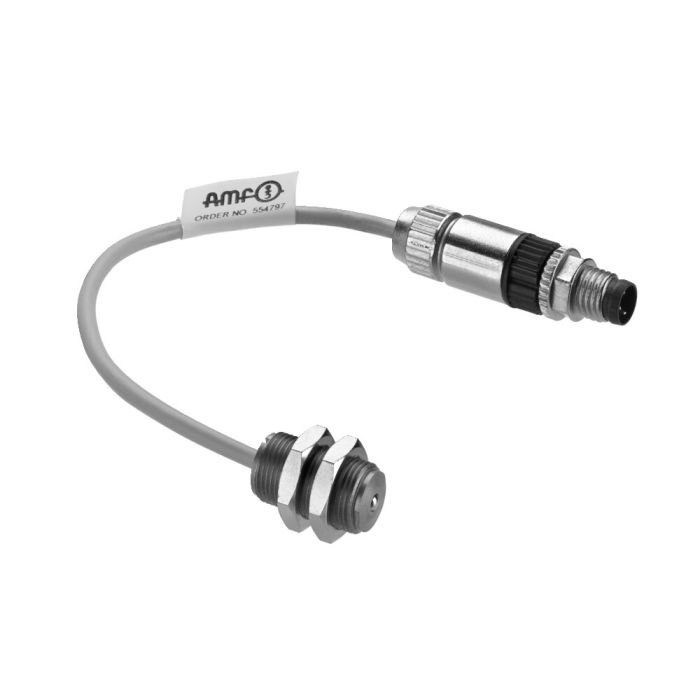

Application: Compact microswitch for querying different states of a clamping device or component, such as support control, position monitoring or clamping control, with high accuracy. The microswitch is connected to the Sender-Unit by a cable.
Features: - Housing: Stainless steel , hardened stop surfaces - Function: N/O contact with mechanical contact - Installation: M10x0.75, flush mountable - The connector (M8) is pre-assembled ready for connection for the AMF Sender-Unit - The stroke is a max. of 0.5 mm with an operating force of 0.8 N - The static load of the probe tip (ball made of stainless steel) is a max. of 1500 N - Designed for ambient temperatures of 0 to +80 °C
Note: Two M10x0.75 fastening nuts are supplied as standard. Different lengths of the connection cable are available on request. For further technical information please request the data sheet.
