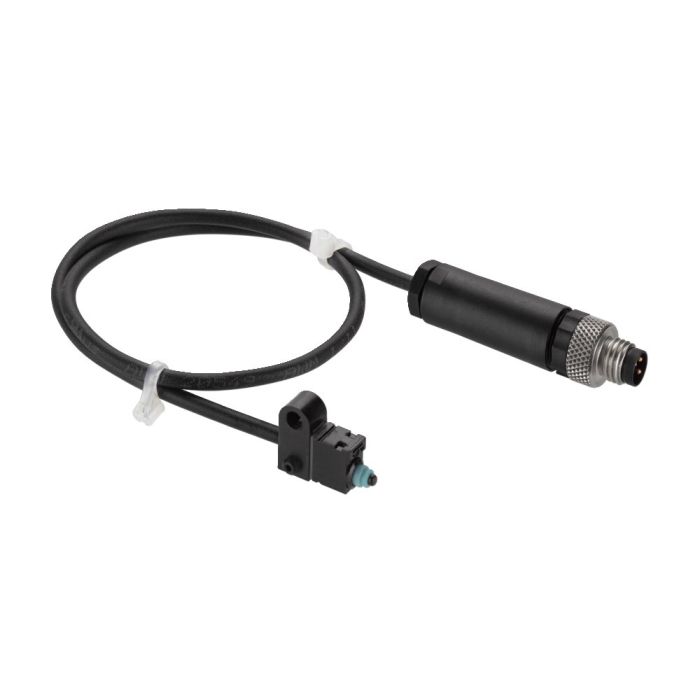

Application: Compact microswitch for querying different states of a clamping device or component, such as support control, position monitoring or clamping control. The microswitch is connected to the Sender-Unit by a cable.
Features: - Housing: Plastic - Function: N/O contact with mechanical contact - The IP67-certified switch is water, dust and moisture-resistant - The connector (M8) is pre-assembled ready for connection for the AMF Sender-Unit - The stroke is a max. of 2.7 mm with an operating force of 1.2 N - Designed for ambient temperatures of 0 to +80 °C
Note: Different lengths of the connection cable are available on request. For further technical information please request the data sheet.
