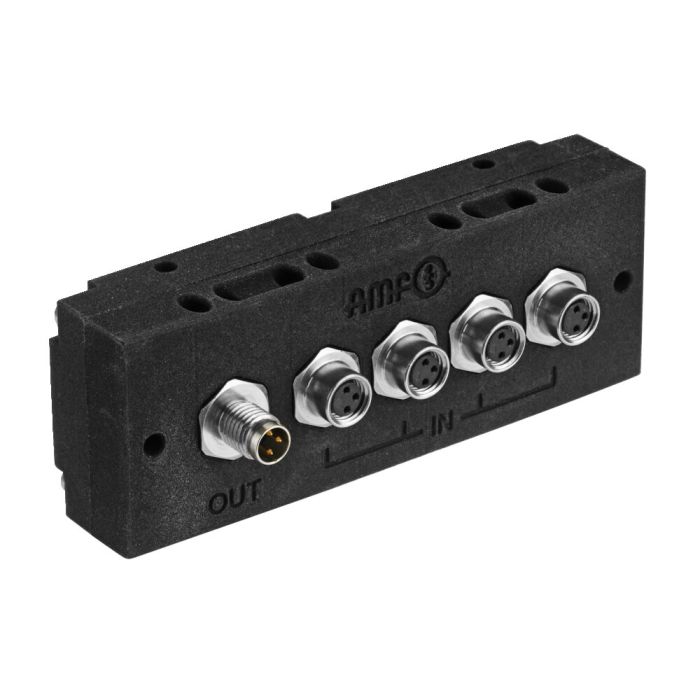

Sensor Box

Application:
The sensor box is used to connect several sensors to one transmitter unit (5010SUS). For this purpose, the sensors used are connected to the inputs of the sensor box. The output is connected to the input of the transmitter unit using the connection cable (5030ZV-02). The output signal of the sensor box detected by the transmitter unit corresponds to the logical connection of the input signals, thus, the transmitter unit only detects a signal when all sensors output a signal.

Features:
- Inputs: 4 cable-bound inputs for energy-free sensors (e.g. microswitch or reed switch)
- Outputs: 1 cable-bound output to the sender unit
- Designed for ambient temperatures from +5 to +65 °C.

Note:
To ensure the function of the sensor box 5030ZK, the unused inputs of the sensor box must be fitted with dummy plugs.
Please order the connecting cable and, where necessary, the dummy plug separately.
For additional technical information, please request the data sheet.
