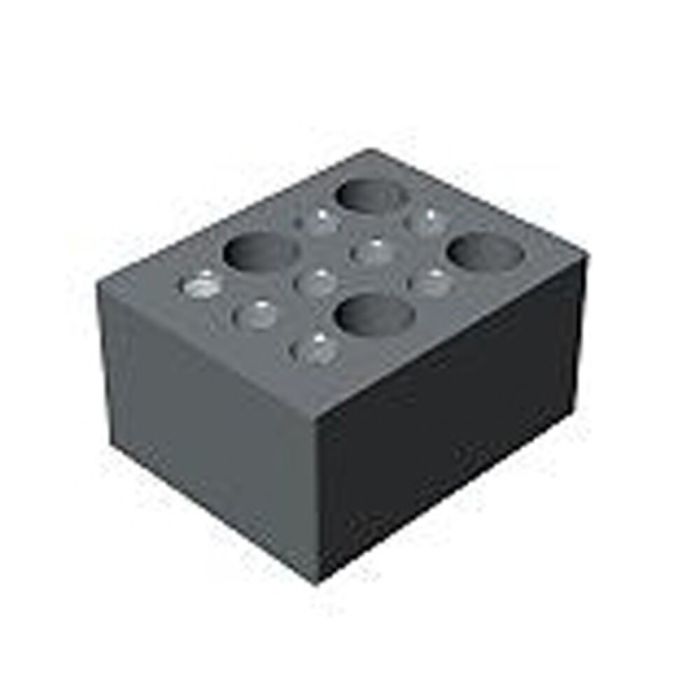

Half-pitch element without positioning
Halves the grid 40 mm to 20 mm, support height 50 mm
Order no.
300137
Note:
This element halves the grid from 40 mm to 20 mm or from 50 mm to 25 mm. There are 8 threads available for mounting additional elements.
| Order no. | 300137 |
|---|
