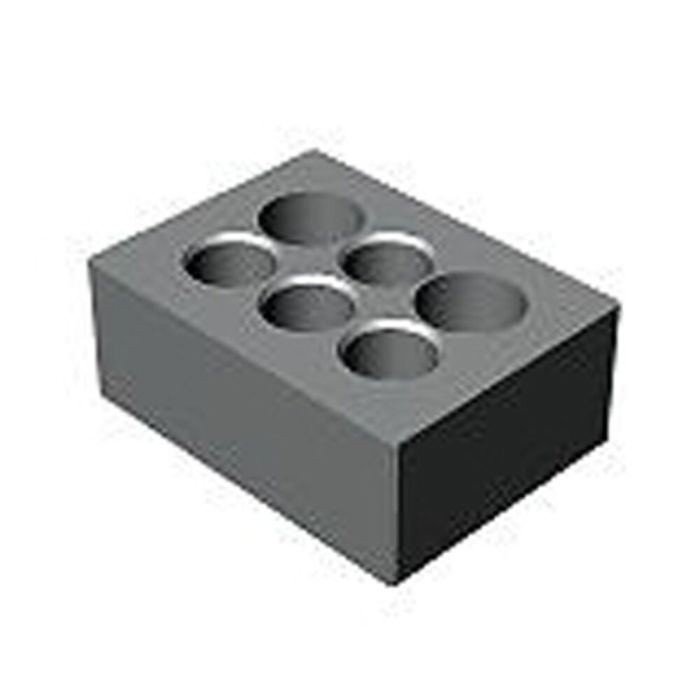

Half-pitch element with positioning
Halves the grid 40 mm to 20 mm, dia. drilling 16 mm, support height 30 mm
Order no.
300400
Note:
This element halves the grid from 40 mm to 20 mm or from 50 mm to 25 mm. There are 4 positioning holes available for mounting additional elements.
| Order no. | 300400 |
|---|
