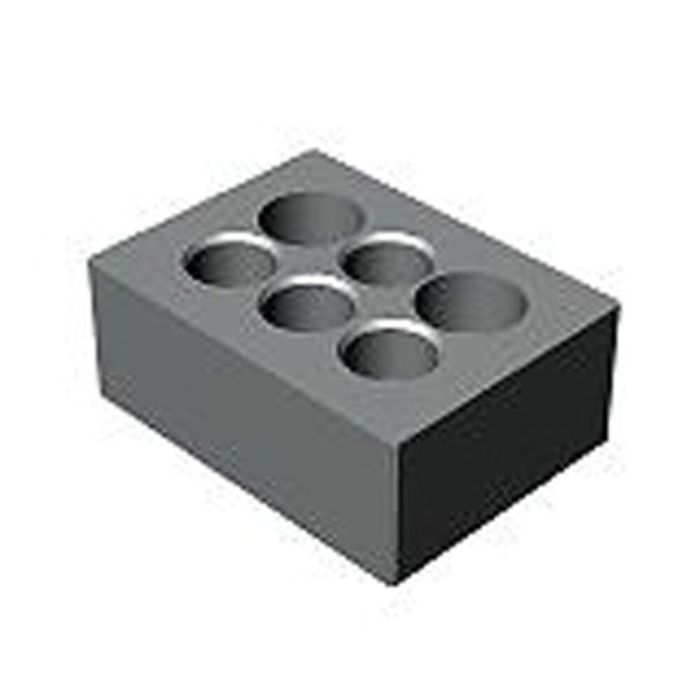

Half-pitch element with positioning
Halves the grid 50 mm to 25 mm, dia. drilling 22 mm, support height 40 mm
Order no.
300418
Note:
This element halves the grid from 40 mm to 20 mm or from 50 mm to 25 mm. There are 4 positioning holes available for mounting additional elements.
| Order no. | 300418 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Centring sleeve, slotted Nr. 78733 For a precise centering on grid holes, dia. 22,1 mm, length 23 mm
