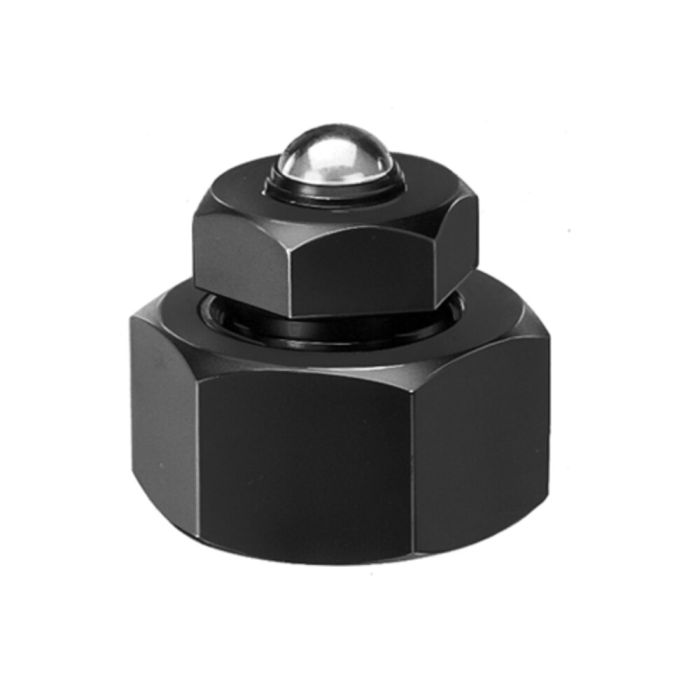

Height setting screw jack with pivotable ball
Size 70, height 56-70 mm, max. clamping force 30 kN
Order no.
72546
Application:
This element with its punctual support is particularly useful in the support and alignment of free-form surfaces e.g. of workpieces which are made of cast iron and forging-grade steels. The precision of alignment is approx. 0.1 mm.
Advantage:
- The pivotable ball minimizes the friction on the support and reduces the required operating forces.
- The use of a point-like support prevents the transmission of the torsional force created by the movement of the spindle. The position of the workpiece remains unchanged.
- The simple and rugged construction provides for a long lasting service life.
| Order no. | 72546 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 56 |
| Max. height [mm] | 70 |
| Max. support force [kN] | 30 |
