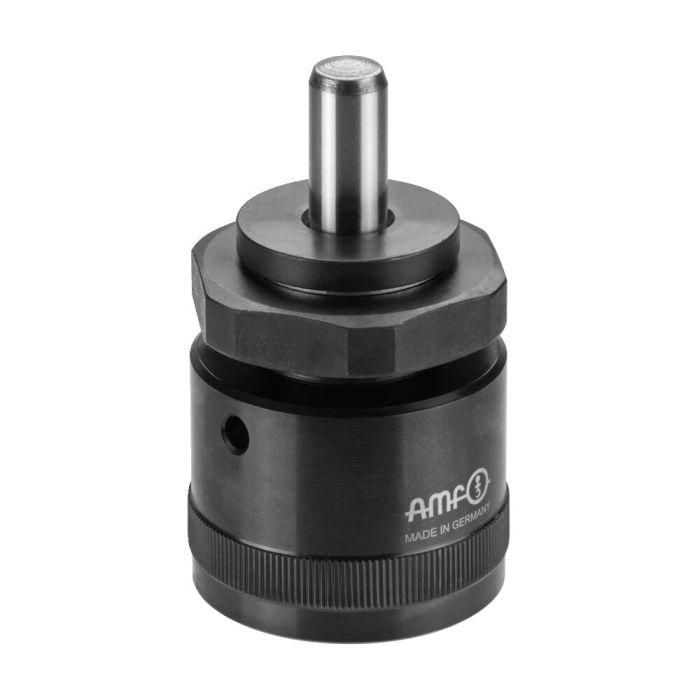

Height setting screw jack
Size 75, centring hole Ø12 mm, with cylinder pin ISO8734-12x50, height 55-75 mm, ⌀ 50 mm
Order no.
86504
Application:
The height guide bench vice can also be used without cylinder pin or with the attachments No. 6440 and No. 6441. The combination with all AMF screw jacks is possible with centring plate.
Note:
Suitable attachments: No. 6440, 6441 and 6442.
Suitable support: No. 6442G.
Advantage:
Sensitive adjustment. A bearing insert prevents the workpiece from being turned while the jack is adjusted.
| Order no. | 86504 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 55 |
| Max. height [mm] | 75 |
| Max. support force [kN] | 30 |
