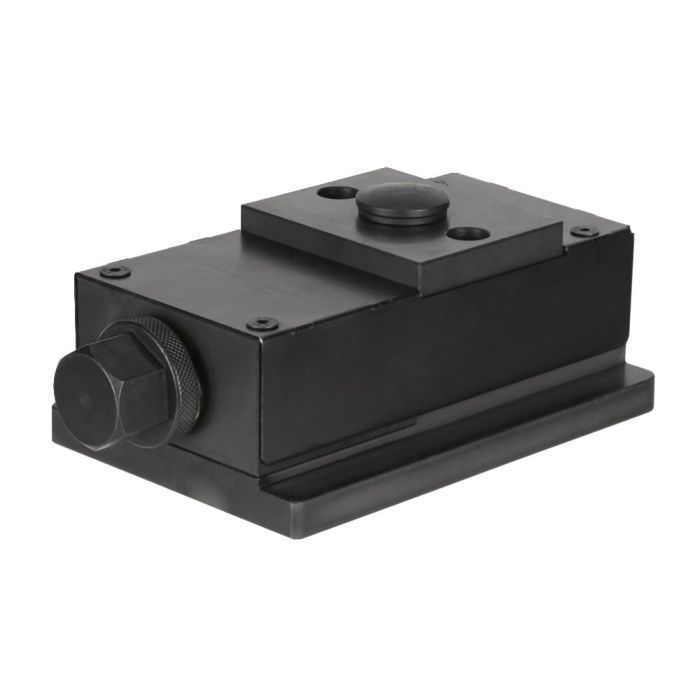

Precision wedge block
Application:
- The fine-machined wedge surfaces permits a smooth, precise adjustment to less than 1/10 mm.
- Operation can be via an open-ended spanner - hence ensuring enhanced safety and ease of handling due to the large adjusting forces.
- The double wedge effect produces a precise vertical movement with no lateral slide.
- The flat design of the precision height wedge enables higher safety properties to be realised when aligning heavy and large components.
- The precision whipstock has an additional centring hole in the floor of the base surface for alignment on the machine table.
Note:
- Suitable caps for the precision whipstock are nos. 6440, 6441 and 6442
- Height adjustment is 0.71 mm / revolution
Advantage:
Precision whipstock can be adjusted under load.
*H/U= height adjustment per single turn.
| Order no. | 375618 |
|---|---|
| Product type | Wedge block |
| Min. height [mm] | 77 |
| Max. height [mm] | 85 |
| Max. support force [kN] | 250 |
