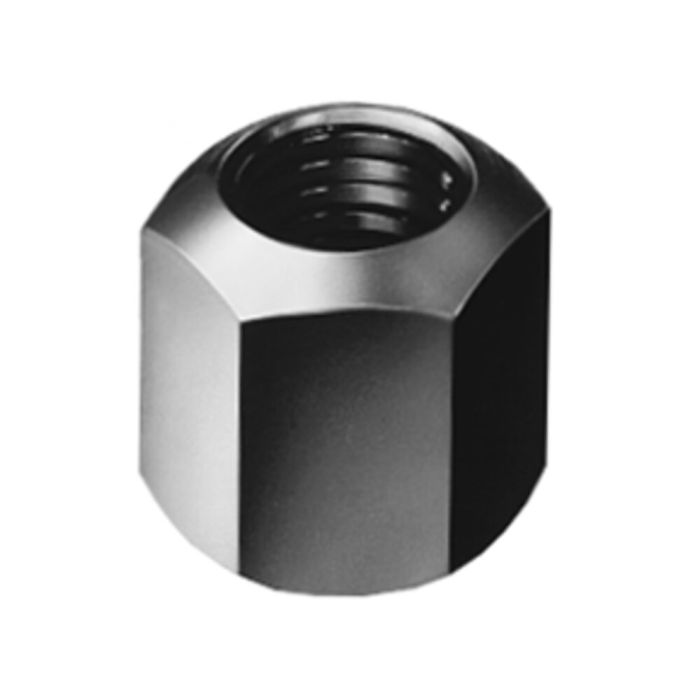

Hexagon nuts (1.5 d high)
Size M16, height 24 mm, width 24 mm
| Order no. | Size D | E | m | R | S | Packaging
unit | Weight
[g] | Availability | Your Price |
| 82321 | M14 * | 23,36 | 21 | 20 | 21 | 50 | 34 | | |
| 82339 | M22 * | 37,72 | 33 | 30 | 34 | 10 | 185 | | |
| 82347 | M12 | 20,03 | 18 | 17 | 18 | 50 | 20 | | |
| 82354 | M10 | 17,77 | 15 | 15 | 16 | 50 | 14 | | |
| 82362 | M6 | 11,05 | 9 | 9 | 10 | 100 | 5 | | |
| 82370 | M8 | 14,38 | 12 | 12 | 13 | 100 | 9 | | |
| 82388 | M10 * | 18,9 | 15 | 15 | 17 * | 50 | 20 | | |
| 82396 | M12 * | 21,1 | 18 | 17 | 19 * | 50 | 28 | | |
| 82404 | M14 * | 24,49 | 21 | 20 | 22 * | 50 | 45 | | |
| 82412 | M16 | 26,75 | 24 | 22 | 24 | 50 | 58 | | |
| 82420 | M18 * | 30,14 | 27 | 24 | 27 | 25 | 83 | | |
| 82438 | M20 | 33,53 | 30 | 27 | 30 | 25 | 110 | | |
| 82446 | M22 * | 35,72 | 33 | 30 | 32 * | 10 | 130 | | |
| 82453 | M24 | 39,98 | 36 | 32 | 36 | 10 | 195 | | |
| 82461 | M27 * | 45,63 | 40 | 36 | 41 | - | 280 | | |
| 82479 | M30 | 51,28 | 45 | 41 | 46 | - | 405 | | |
| 82487 | M36 | 61,31 | 54 | 50 | 55 | - | 715 | | |
| 82495 | M42 | 72,61 | 63 | 58 | 65 | - | 1170 | | |
| 82503 | M48 | 83,91 | 72 | 67 | 75 | - | 1800 | | |
| | | | | | | | | |
* Size not included in DIN, dimensions similar to DIN
More Information | Order no. | 82412 |
|---|
| Product type | Hexagon nuts |
|---|
| Thread [M] | 16 |
|---|
| Strength class | 10 |
|---|
