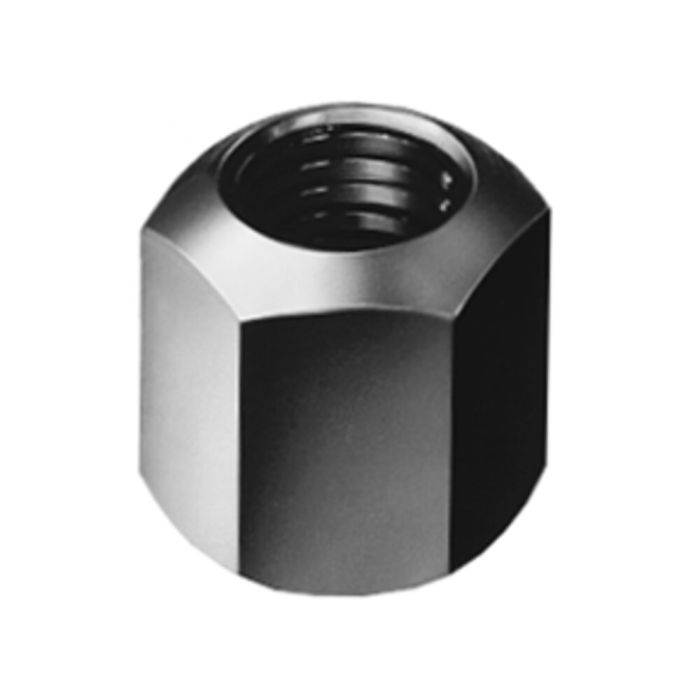

Hexagon nuts (1.5 d high)

Size M42, height 400 mm, width 65 mm

Order no.

82495

Order no.	Size D	E	m	R	S	Packaging unit	Weight [g]
82321	M14 *	23,36	21	20	21	50	34
82339	M22 *	37,72	33	30	34	10	185
82347	M12	20,03	18	17	18	50	20
82354	M10	17,77	15	15	16	50	14
82362	M6	11,05	9	9	10	100	5
82370	M8	14,38	12	12	13	100	9
82388	M10 *	18,9	15	15	17 *	50	20
82396	M12 *	21,1	18	17	19 *	50	28
82404	M14 *	24,49	21	20	22 *	50	45
82412	M16	26,75	24	22	24	50	58
82420	M18 *	30,14	27	24	27	25	83
82438	M20	33,53	30	27	30	25	110
82446	M22 *	35,72	33	30	32 *	10	130
82453	M24	39,98	36	32	36	10	195
82461	M27 *	45,63	40	36	41	-	280
82479	M30	51,28	45	41	46	-	405
82487	M36	61,31	54	50	55	-	715
82495	M42	72,61	63	58	65	-	1170
82503	M48	83,91	72	67	75	-	1800

* Size not included in DIN, dimensions similar to DIN
