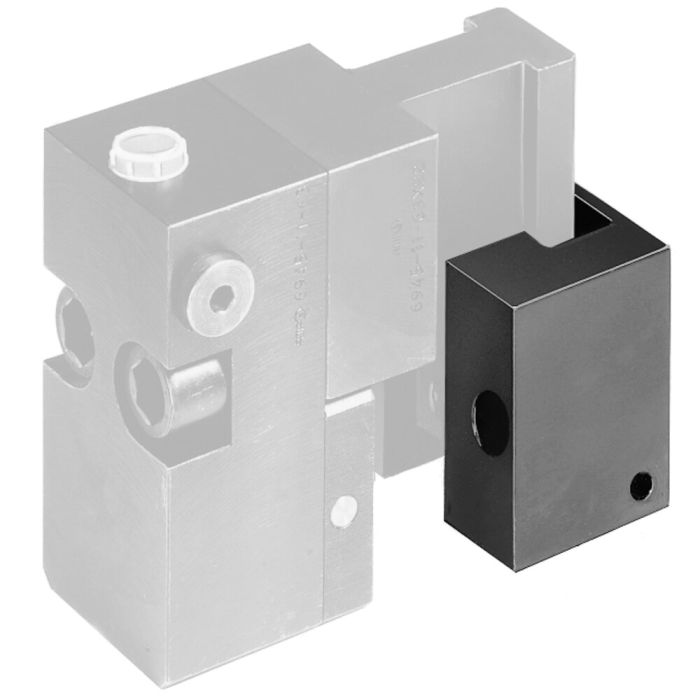

Holder for Clamping Head

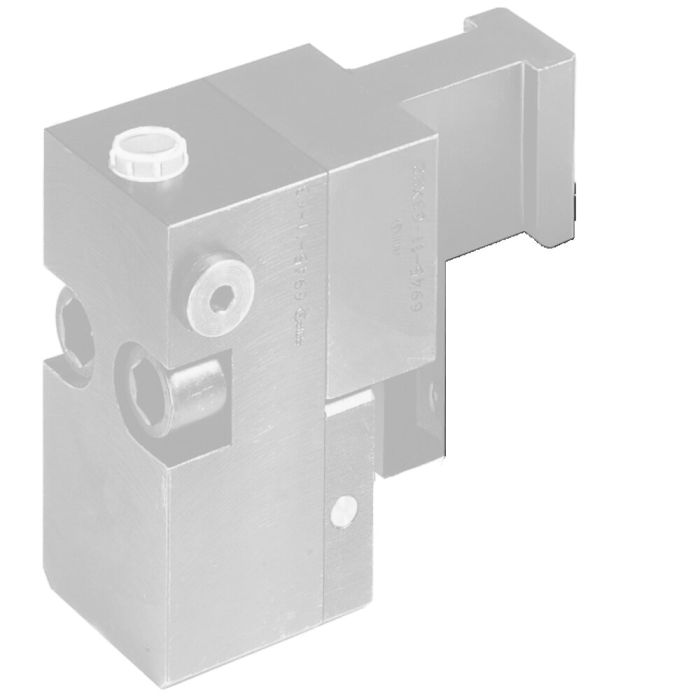

For parking clamp head No. 6945-11-**x28x** during tool changing
| Order no. | Article no. | A
[mm] | for T-Slot | for Clamping Head | Weight
[g] | Availability | Your Price |
| 110692 | 6945-11-005 | 20 | 18 | 6945-11-**x18x** | 1550 | | |
| 110700 | 6945-11-006 | 16 | 14 | 6945-11-**x14x** | 1600 | | |
| 255687 | 6945-11-003 | 24 | 22 | 6945-11-**x22x** | 2120 | | |
| 255752 | 6945-11-004 | 30 | 28 | 6945-11-**x28x** | 2090 | | |
| | | | | | | |
| Order no. | b | C | D | E | F | G |
| 110692 | 80 | 80 | 31 | 60 | 40 | 16 |
| 110700 | 80 | 80 | 25 | 60 | 35 | 12 |
| 255687 | 90 | 90 | 40 | 70 | 50 | 20 |
| 255752 | 90 | 90 | 50 | 70 | 60 | 25 |
| | | | | | |
Design:
Steel, blued.
Application:
For parking clamp head No. 6945-11-**-** during tool changing.
Note:
Untoleranced dimensions are to DIN ISO 2768 medium.
On request:
Special versions available on request.
More Information | Order no. | 255752 |
|---|
| Product type | Clamping elements |
|---|
| Max. clamping force [kN] | 94 |
|---|
