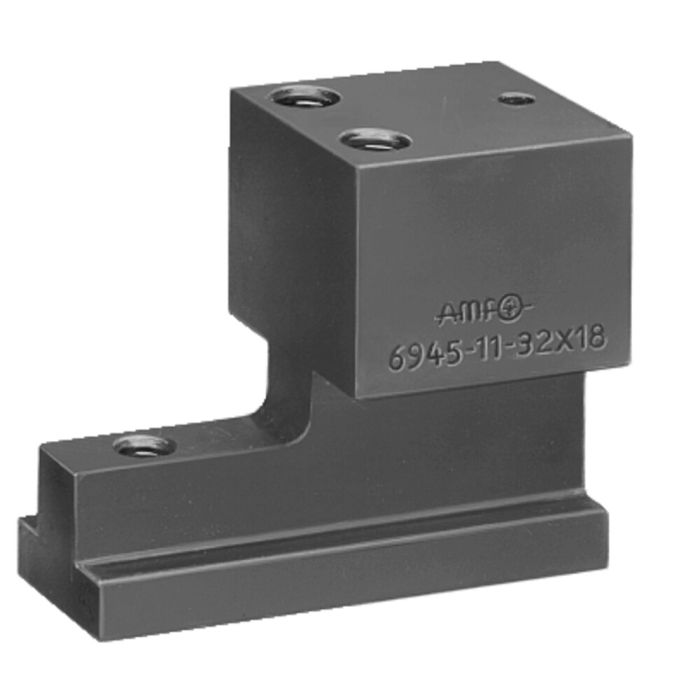

Base for Clamping Head
Suitable for clamping head no. 6945-11-94, slot 28 mm, length 140 mm
| Order no. | Article no. | A
[mm] | H
[mm] | Weight
[g] | Availability | Your Price |
| 60285 | 6945-11-63x22 | 22 | 30 | 1960 | | |
| 60475 | 6945-11-94x28 | 28 | 36 | 4750 | | |
| 61226 | 6945-11-20x14 | 14 | 25 | 680 | | |
| 61242 | 6945-11-32x18 | 18 | 25 | 1230 | | |
| 61440 | 6945-11-20x18 | 18 | 25 | 790 | | |
| 61457 | 6945-11-32x22 | 22 | 30 | 1470 | | |
| 61465 | 6945-11-63x28 | 28 | 37 | 2380 | | |
| | | | | | |
| Order no. | b | C | D | F | G | k | L | m | N | P | U |
| 60285 | 35 | 14 | M10 | 38 | M16 | 85,0 | 110 | 60 | 34 | 32 | 48,3 |
| 60475 | 44 | 19 | M10 | 55 | M20 | 125,5 | 140 | 80 | 46 | 47 | 69,0 |
| 61226 | 22 | 8 | M8 | 26 | M10 | 65,0 | 70 | 40 | 24 | 18 | 32,7 |
| 61242 | 28 | 10 | M10 | 32 | M12 | 73,0 | 90 | 50 | 28 | 24 | 40,4 |
| 61440 | 28 | 10 | M8 | 26 | M10 | 72,0 | 70 | 40 | 24 | 24 | 32,7 |
| 61457 | 35 | 14 | M10 | 32 | M12 | 82,0 | 90 | 50 | 28 | 32 | 40,4 |
| 61465 | 44 | 18 | M10 | 38 | M16 | 94,0 | 110 | 60 | 34 | 40 | 48,3 |
| | | | | | | | | | | |
More Information | Order no. | 60475 |
|---|
| Product type | Clamping elements |
|---|
| Max. clamping force [kN] | 94 |
|---|
