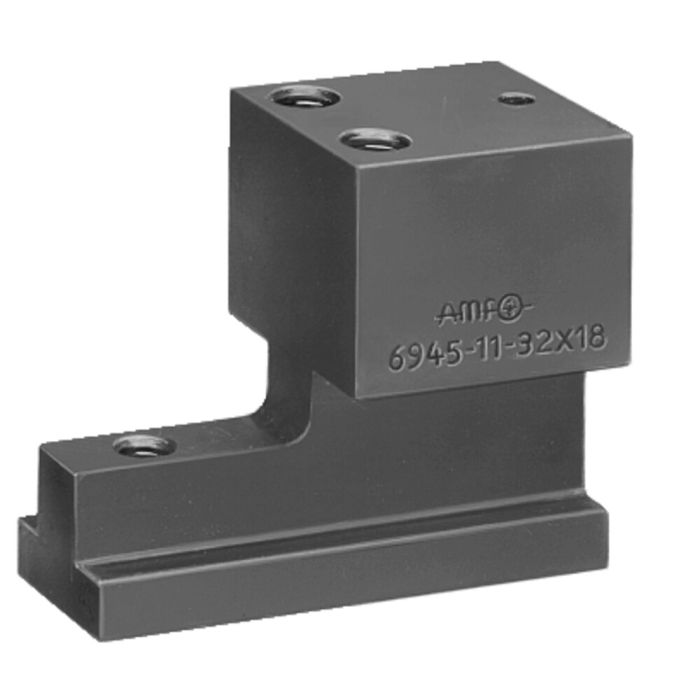

Base for Clamping Head

Suitable for clamping head no. 6945-11-32, slot 22 mm, length 90 mm

Order no.

61457

Order no.	Article no.	A [mm]	H [mm]	Weight [g]
60285	6945-11-63x22	22	30	1960
60475	6945-11-94x28	28	36	4750
61226	6945-11-20x14	14	25	680
61242	6945-11-32x18	18	25	1230
61440	6945-11-20x18	18	25	790
61457	6945-11-32x22	22	30	1470
61465	6945-11-63x28	28	37	2380

Order no.	b	C	D	F	G	k	L	m	N	P	U
60285	35	14	M10	38	M16	85,0	110	60	34	32	48,3
60475	44	19	M10	55	M20	125,5	140	80	46	47	69,0
61226	22	8	M8	26	M10	65,0	70	40	24	18	32,7
61242	28	10	M10	32	M12	73,0	90	50	28	24	40,4
61440	28	10	M8	26	M10	72,0	70	40	24	24	32,7
61457	35	14	M10	32	M12	82,0	90	50	28	32	40,4
61465	44	18	M10	38	M16	94,0	110	60	34	40	48,3
